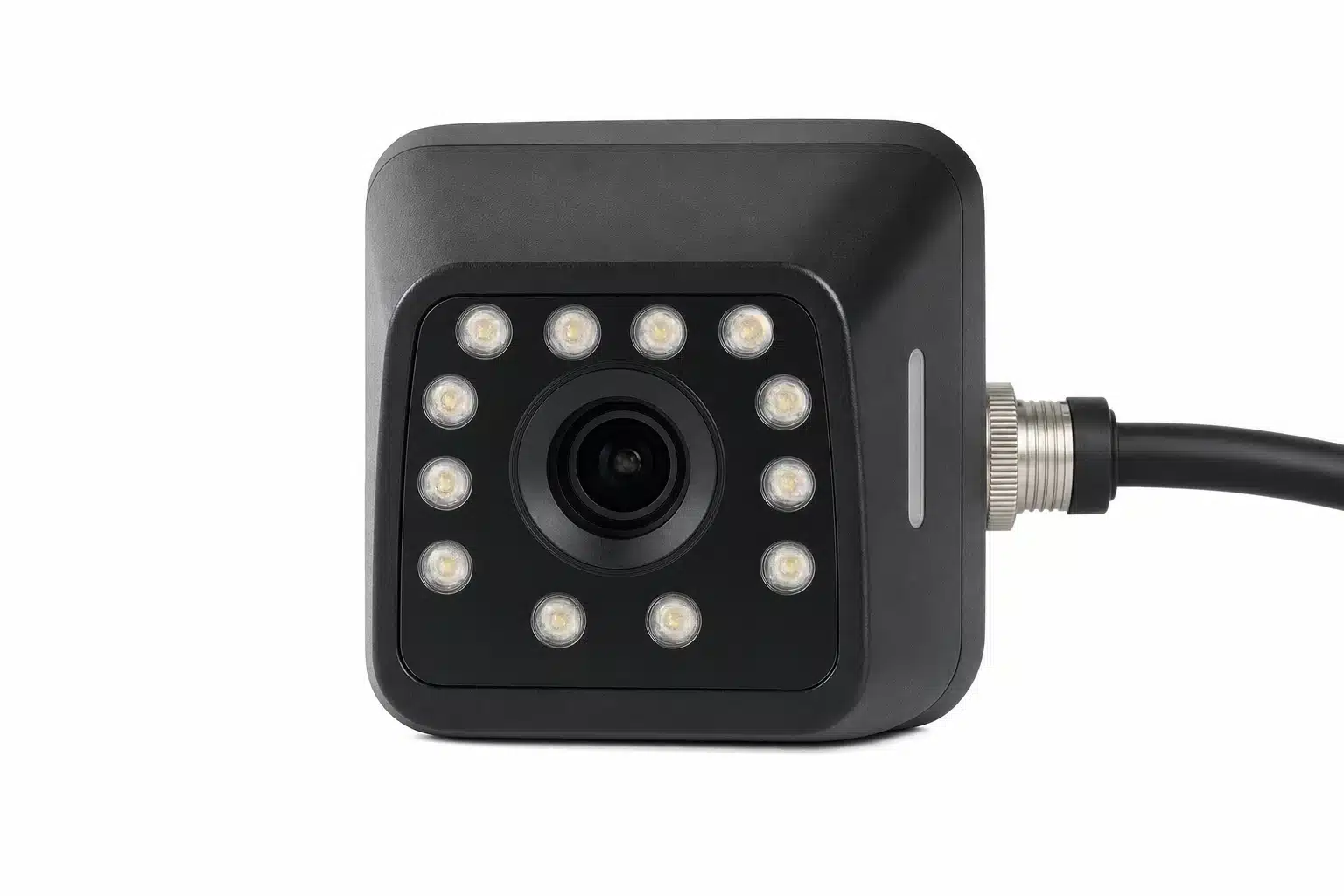

Keyence IV3-500MA Vision Sensor Stand, Built-in AI
Keyence’s IV3-500MA is part of the IV vision sensor system. This variant is supplied with monochrome imaging. A separate amplifier or setup tool is required on some models to configure and monitor the sensor. The IV platform packages camera, lighting, and processing into a self-contained sensor that is configured rather than programmed. Applications include mistake-proofing steps that a single photoelectric sensor cannot cover. Check compatibility with the IV hardware already installed.
Specifications
| Product Code | IV3-500MA |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Vision Sensors |
| Supply Voltage | 24 VDC +25%/-20% (including ripple) *14 |
| Current Consumption | 3.3 A or less (without the AI Lighting unit, and including the output load) 1.8 A or less (AI Lighting unit, and including the output load) *15 |
| Installed Distance | 50 mm 1.97" or more *1 |
| Field of View | Installed distance 50 mm 1.97" : 22 (H) × 16 (V) mm 0.87" (H) × 0.63" (V) to Installed distance 3000 mm 118.11" : 1184 (H) × 888 (V) mm 46.61" (H) × 34.96" (V) |
| Weight | Approx. 300 g 10.59 oz (without the AI Lighting unit) Approx. 495 g 17.47 oz (with the AI Lighting unit) |
| Connector Type | M12 12 pin A code Male connector |
| Connector Type | M12 8 pin X code Female connector |
| Ambient Temperature | 0 to +50°C 32 to 122°F (No freezing) *17 |
| Tool With Standard Mode | Learning, Outline, Color area *2 , Area *3 , Edge pixels, Color average *2 , Brightness average *3 , Width, Diameter, Edge presence, Pitch, OCR, Color prohibit *4 , Brightness prohibit, Position adjustment, High-speed position adjustment (1-axis edge/2-axis edge), Blob count |
| Switch Settings (Programs) | 128 programs (when using SD card) / 32 programs (when not using SD card) |
| Number of Tools | Total: 65 tools *5 |
- Brand: Keyence
Mfr # IV3-500MA
$4,351.80
Delivery by Wed, Aug 12
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
