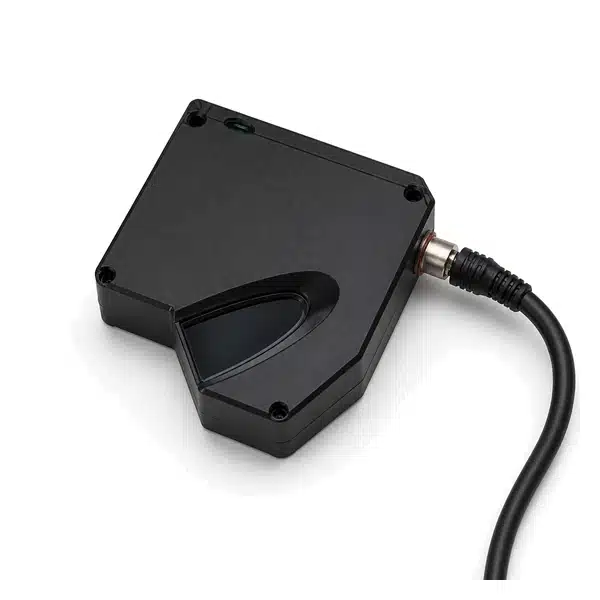

Keyence LJ-X8020 Laser Profiler Sensor Head, 2D 3D
LJ-X8020 is a Keyence 2D and 3D laser profiler component. Keyence catalogs the LJ-X8020 as a sensor head. Profile data supports width, height, step, angle, and gap measurements that a single-point sensor cannot produce. Applications include profile comparison against a reference and continuous shape monitoring. Heads and controllers are separate items, so confirm which part your system requires.
Specifications
| Product Code | LJ-X8020 |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Laser Profilers and 3D Measurement Sensors |
| Output Details | 10 mW |
| Reference Distance | 20 mm 0.79" |
| Reference Distance | 7.5 mm 0.30" |
| Light Source | Blue semiconductor laser |
| Light Source | Blue LED (405 nm) |
| Laser Class | Class 2M laser product (IEC60825-1, FDA (CDRH) Part 1040.10 *1 ) *2 |
| Wavelength | 405 nm (visible light) |
| Weight | Approx. 1000 g 2.20 lb |
| Z-axis (Height) | ±2.2 mm 0.09" (F.S.=4.4 mm 0.17" ) |
| Ambient Temperature | 0 to +45°C 32 to +113°F *11 |
| NEAR Side | 7 mm 0.28" |
| FAR Side | 8 mm 0.31" |
- Brand: Keyence
Mfr # LJ-X8020
$3,942.58
Delivery by Wed, Oct 7
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
