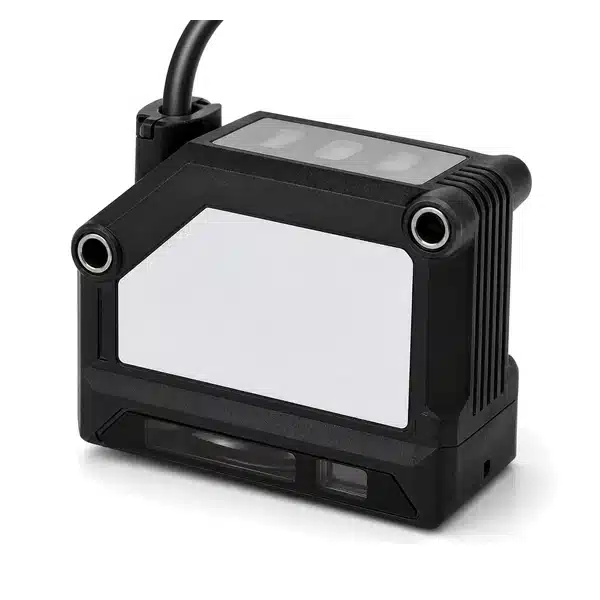

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence IL-600 Laser Sensor Head, CMOS Multi-Function Analog
Keyence’s IL-600 is a laser triangulation measurement component. Keyence catalogs the IL-600 as a sensor head. Repeatability and linearity are the specifications that usually drive head selection. Laser triangulation measures distance to a target without contact, reporting a value rather than a simple on-off state. It is used for thickness, height, step, warp, and runout measurement on production parts. Heads and controllers are separate items, so confirm which component your system needs.
Specifications
| Product Code | IL-600 |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Laser Sensors |
| Output Details | 560 µW |
| Linearity | ±0.25% of F.S. (200 to 600 mm 7.84" to 23.62" ) *2 *3 ±0.5% of F.S. (200 to 1000 mm 7.84" to 39.37" ) *2 *3 |
| Repeatability | 50 µm *4 |
| Reference Distance | 600 mm 23.62" |
| Measurement Range | 200 to 1000 mm 7.87" to 39.37" |
| Spot Diameter (at Standard Distance) | Approx. ø1.6 mm ø0.06" |
| Sampling Rate | 0.33/1/2/5 ms (4 levels available) |
| Temperature Characteristics | 0.08% of F.S./°C *5 |
| Laser Class | Class 2 (FDA (CDRH) Part1040.10) *1 Class 2 (IEC 60825-1) |
| Weight | Approx. 135 g |
| Ambient Temperature | -10 to +50 °C 14 to 122 °F (No condensation or freezing) |
