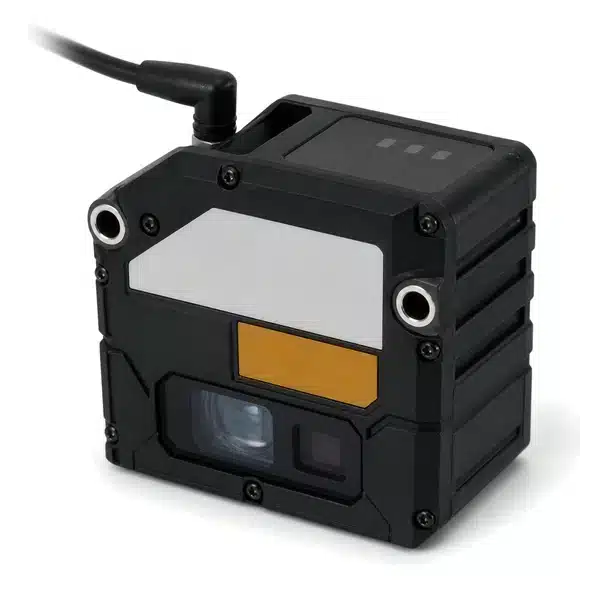

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence IL-2000 Laser Sensor Head, CMOS Multi-Function Analog
The Keyence IL-2000 is part of a laser displacement measurement system. Keyence catalogs the IL-2000 as a sensor head. Spot and wide-beam heads behave differently on rough, curved, or reflective surfaces. Repeatability and linearity are the specifications that usually drive head selection. Machine builders fit these where dimensional data must be logged, not just switched. Head-to-controller cables may be required and are ordered separately.
Specifications
| Product Code | IL-2000 |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Laser Sensors |
| Output Details | 560 µW |
| Linearity | ±0.16% of F.S. (1000 to 3500 mm 39.37" to 137.80" ) *3 *4 |
| Repeatability | 100 µm *5 |
| Reference Distance | 2000 mm 78.74" |
| Measurement Range | 1000 to 3500 mm 39.37" to 137.80" |
| Spot Diameter (at Standard Distance) | Approx. 1400 × 7000 µm |
| Sampling Rate | 0.33/1/2/5 ms (4 levels available) |
| Temperature Characteristics | 0.016% of F.S./°C *6 |
| Laser Class | Class 2 (FDA (CDRH) Part1040.10) *2 Class 2 (IEC 60825-1) |
| Weight | Approx. 350 g |
| Ambient Temperature | -10 to +50 °C 14 to 122 °F (No condensation or freezing) |
