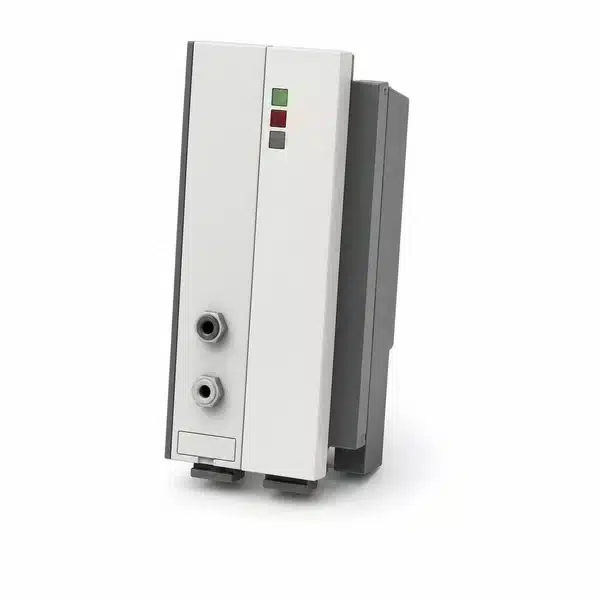

Beckhoff CX1500-M750 SERCOS II master fieldbus connection
SERCOS II drive networks connect to Beckhoff CX10x0 Embedded PC systems through the CX1500-M750 master fieldbus module, which offers FSMA fiber optic interfaces per IEC 872-2 and selectable data rates of 2, 4, 8 or 16 Mbaud. The master addresses up to 254 slave devices with synchronous process data communication and permits parallel operation of several master connections. A 2 kB DPRAM links to the CPU, and configuration occurs in the TwinCAT 2 System Manager.
Specifications
| Product Code | CX1500-M750 |
| Brand | Beckhoff |
| Product Category | Industrial Computers IPC Service Products |
| Data Transfer Rate | 2, 4, 8, 16 Mbaud |
| Bus Interface | FSMA standard, IEC 872-2 |
| Fieldbus | SERCOS II |
| Bus Device | max. 254 slaves |
| Interface to CPU | ISA plug-and-play, 2 kbytes DPRAM |
| Weight | approx. 190 g |
| Operating Temperature | 0…55°C |
| Protection Rating | IP20 |
| Relative Humidity | 95%, no condensation |
- Brand: Beckhoff
Mfr # CX1500-M750
$1,208.57
Delivery by Wed, Oct 7
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
