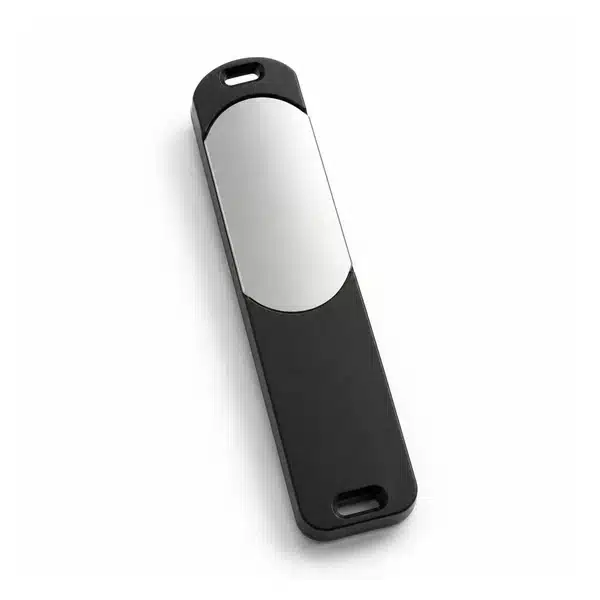

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Pilz 570620 Safety Interlock Switch
As a safety interlock switch in the PSEN family, Pilz 570620 (PSEN sl-1.0 1.1 1actuator) is aimed at monitoring movable guards and machine access points. The manufacturer specifies sensor principle: Transponder; the unit also is protected to IP67 and specifies coding level to iso 14119 as Low. It is intended for guard doors, access panels, and safety interlocking systems, with component integration guided by the specified sensing method, connection, and protection level.
Specifications
| Product Code | 570620 |
| Alternative Part Number | PSEN sl-1.0 1.1 1actuator |
| Brand | Pilz |
| Product Category | Safety Products Machine Safety Interlock Switches with Guard Locking |
| Coding Level to ISO 14119 | Low |
| Sensor Principle | Transponder |
| Transponder Coding | coded |
| Height Dimension | 188 |
| Width Dimension | 52 |
| Depth Dimension | 22 |
| Ambient Temperature | -25 55 |
| Housing Protection Rating | IP67 |
| Approval | CE UKCA cULus Listed FCC IC EAC (Eurasian) |
