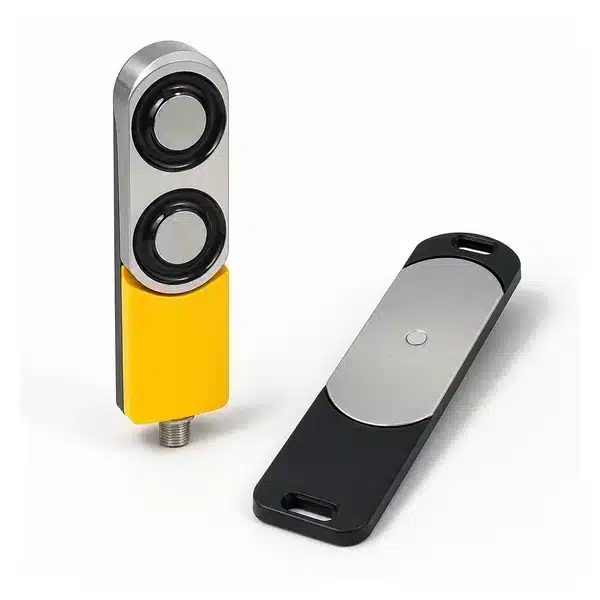

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Pilz 570602 Safety Interlock Switch
The safety interlock switch configuration of Pilz 570602 (PSEN sl-1.0p 2.2 / PSEN sl-1.0 1unit) in the PSEN family targets monitoring movable guards and machine access points. The manufacturer specifies sensor principle: Transponder; the unit also provides 3 inputs and operates from 24 24. It is intended for guard doors, access panels, and safety interlocking systems, with component integration guided by the specified sensing method, connection, and protection level.
Specifications
| Product Code | 570602 |
| Alternative Part Number | PSEN sl-1.0p 2.2 / PSEN sl-1.0 1unit |
| Brand | Pilz |
| Product Category | Cable Assemblies Circular Cable Assemblies |
| Supply Voltage (V) | 24 24 |
| Supply Voltage Type U1 | DC |
| DC Power Consumption | 7.2 |
| Number of Inputs | 3 |
| Operating Frequency | 122 kHz - 128 kHz |
| Height Dimension | 172 |
| Width Dimension | 45 |
| Depth Dimension | 44 |
| Ambient Temperature | -25 55 |
| Housing Protection Rating | IP67 |
| Approval | CE UKCA cULus Listed FCC IC EAC (Eurasian) |
- Brand: Pilz
Mfr # 570602
$980.17
Special Order
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
