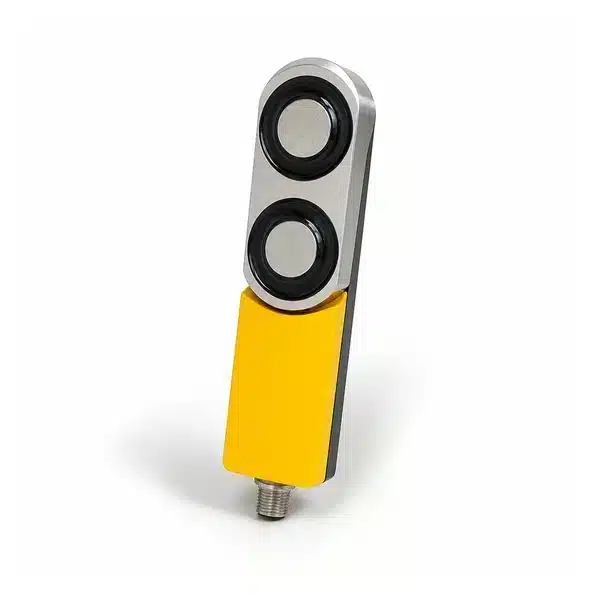

Pilz 570610 Safety Interlock Switch
The Pilz 570610 (PSEN sl-1.0p 1.1 1switch) in the PSEN family addresses monitoring movable guards and machine access points as a safety interlock switch. Manufacturer data lists sensor principle: Transponder, number of inputs: 3, and supply voltage: 24 24. It is practical for guard doors, access panels, and safety interlocking systems that depend on the specified sensing method, connection, and protection level.
Specifications
| Product Code | 570610 |
| Alternative Part Number | PSEN sl-1.0p 1.1 1switch |
| Brand | Pilz |
| Product Category | Cable Assemblies Circular Cable Assemblies |
| Supply Voltage (V) | 24 24 |
| Supply Voltage Type U1 | DC |
| DC Power Consumption | 7.2 |
| Number of Inputs | 3 |
| Operating Frequency | 122 kHz - 128 kHz |
| Height Dimension | 172 |
| Width Dimension | 45 |
| Depth Dimension | 44 |
| Ambient Temperature | -25 55 |
| Housing Protection Rating | IP67 |
| Approval | CE UKCA cULus Listed FCC IC EAC (Eurasian) |
- Brand: Pilz
Mfr # 570610
$907.10
Special Order
