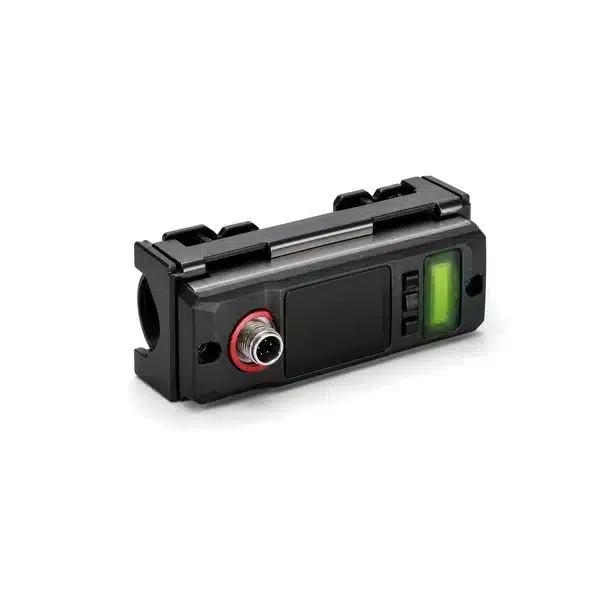

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence FD-Q20C Flow Sensor, Sensor 15A/20A Type, Clamp-on
Supplied under part number FD-Q20C, this item is a Keyence flow sensor component. Keyence catalogs the FD-Q20C as a main unit. Flow sensing confirms that coolant, water, or air is actually moving, which pressure alone cannot verify. Machine builders fit flow sensors where an interruption would cause damage or scrap. Confirm the flow range, pipe size, fluid type, and output configuration before ordering.
Specifications
| Product Code | FD-Q20C |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Flow Sensors |
| Supply Voltage | 20 to 30 VDC , ripple (P-P) 10% max, Class2/LPS |
| Power I/O Connector | M12 4-pin connector |
| Current Consumption | 100 mA or less (Load current excluded) *6 |
| Response Time | 0.5 s / 1.0 s / 2.5 s / 5 s / 10 s / 30 s / 60 s |
| Display Resolution | 0.1/ 1 (Default : 0.1) (L/min) |
| Repeatability | 0.5 s : ±2.0%, 1 s:±1.5%, 2.5 s : ±1.0%, 5 s : ±0.5%, 10 s : ±0.35%, 30 s : ±0.2%, 60 s : ±0.15% (/F.S. *4 (Specific to selected response time)) |
| Weight | Approx. 400 g (including mounting bracket) |
| Supported Pipe Diameter | 1/2" (15 A), ø18 to ø23 (mm) 3/4" (20 A), ø23 to ø28 (mm) |
| Supported Pipe Materials | Metal pipe/Resin pipe *1 |
| Supported Fluids | Various liquid [i.e. water (including DI), oils, chemicals, etc.] *1 |
| Ambient Temperature | -10 to +60 °C 14 to 140 °F (No freezing) |
