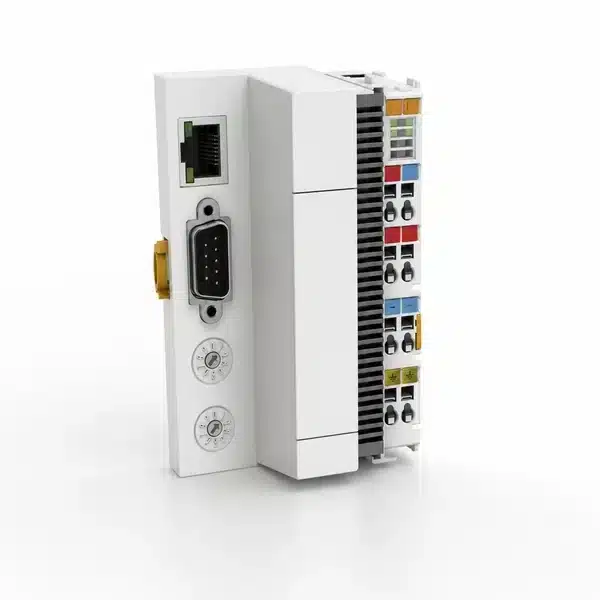

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Beckhoff CX8050 Embedded PC
The CX8050 Embedded PC integrates a CANopen master interface on a 9-pin D-sub connector with transmission rates up to 1 Mbaud and automatic detection. Its 400 MHz Arm9 processor, 64 MB DDR2 RAM and microSD storage run IEC 61131-3 programs under TwinCAT 2 PLC on Windows Embedded CE 6. Beckhoff includes one 10/100 Mbit/s Ethernet port, a 1-second UPS, automatic E-bus or K-bus recognition and passive cooling in the 64 x 100 x 73 mm housing.
Specifications
| Product Code | CX8050 |
| Brand | Beckhoff |
| Product Category | Industrial Computers Embedded PCs |
| Power Supply | 24 V DC (-15%/+20%) |
| Bus Interface | D-sub connector, 9-pin according to CANopen specification, galvanically decoupled |
| Weight | approx. 180 g |
| Operating Temperature | 0…55°C |
| Protection Rating | IP20 |
| Relative Humidity | 95%, no condensation |
- Brand: Beckhoff
Mfr # CX8050
$1,959.25
Delivery by Mon, Oct 26
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
