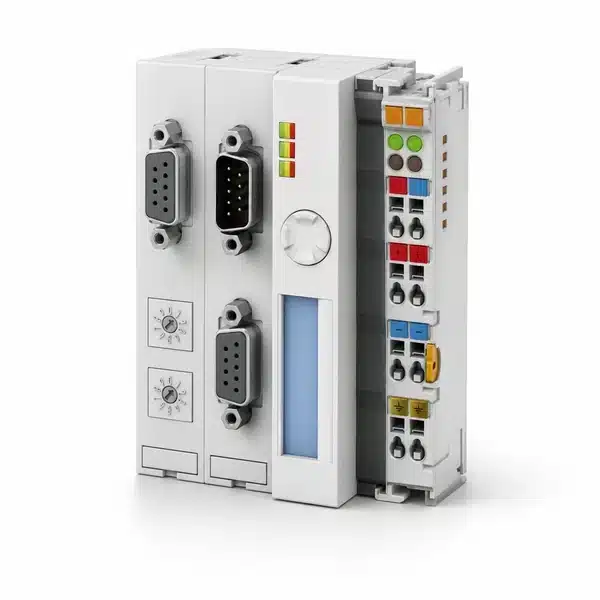

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Beckhoff BX3100 PROFIBUS Bus Terminal Controller
Positioned above the BC series, the BX3100 PROFIBUS Bus Terminal Controller from Beckhoff adds a two-line illuminated FSTN display, joystick navigation, battery-backed real-time clock and two serial ports alongside its PROFIBUS slave interface with automatic baud rate detection to 12 Mbaud. Program and data memory each measure 256 kB, and up to 64 Bus Terminals connect directly, or 255 via K-bus extension. Programming follows IEC 61131-3 under TwinCAT with 244 bytes of fieldbus data per direction.
Specifications
| Product Code | BX3100 |
| Brand | Beckhoff |
| Product Category | Automation and Controls Controllers I-O Systems |
| Power Supply | 24 V DC (-15%/+20%) |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Data Transfer Rate | automatic detection up to 12 Mbaud |
| Bus Interface | 1 x D-sub socket, 9-pin |
| PLC Data | PROFIBUS | BX3100 |
| Weight | approx. 250 g |
| Operating Temperature | -25…+60°C |
| Relative Humidity | 95%, no condensation |
- Brand: Beckhoff
Mfr # BX3100
$761.50
Delivery by Fri, Sep 4
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
