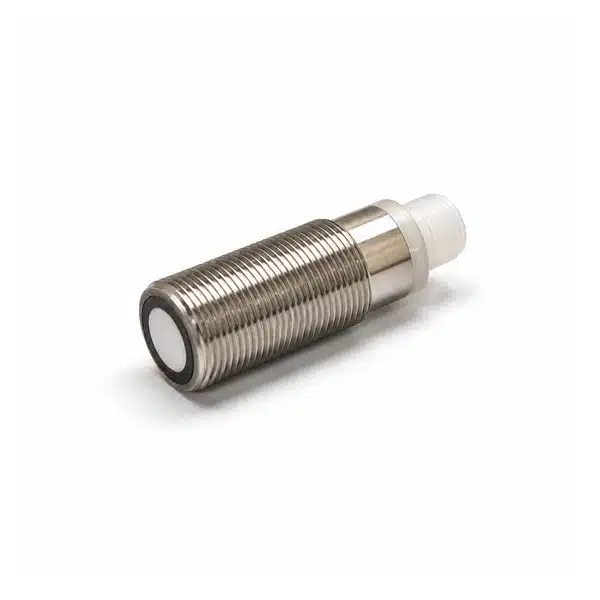

Pepperl+Fuchs UB800-18GM40-E5-V1 Ultrasonic Proximity Sensor
Pepperl+Fuchs UB800-18GM40-E5-V1 brings ultrasonic sensor functionality to measuring distance or detecting objects with ultrasound. Its specification pairs sensing range: 50 … 800 mm with output type: 1 switching output E5, PNP NO/NC, programmable, plus operating voltage: 10 … 30 V DC, ripple 10 %SS. The model can be applied in level control, material handling, and presence detection when selection depends on stable sensing across changing target colors and surface finishes.
Specifications
| Product Code | UB800-18GM40-E5-V1 |
| Brand | Pepperl+Fuchs |
| Product Category | Automation and Controls Sensors Ultrasonic Sensors |
| Output Type | 1 switching output E5, PNP NO/NC, programmable |
| Operating Voltage | 10 ... 30 V DC , ripple 10 %SS |
| Switching Frequency | ≤ 4 Hz |
| Sensing Range | 50 ... 800 mm |
| Range Hysteresis | 1 % of the set operating distance |
| Repeat Accuracy | ≤ 1 % |
| Adjustment Range | 70 ... 800 mm |
| Standard Target Plate | 100 mm x 100 mm |
| Connection Type | Connector plug M12 x 1 , 4-pin |
| Ambient Temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Dead Band | 0 ... 50 mm |
- Brand: Pepperl+Fuchs
Mfr # UB800-18GM40-E5-V1
$256.90
Delivery by Tue, Sep 1
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
