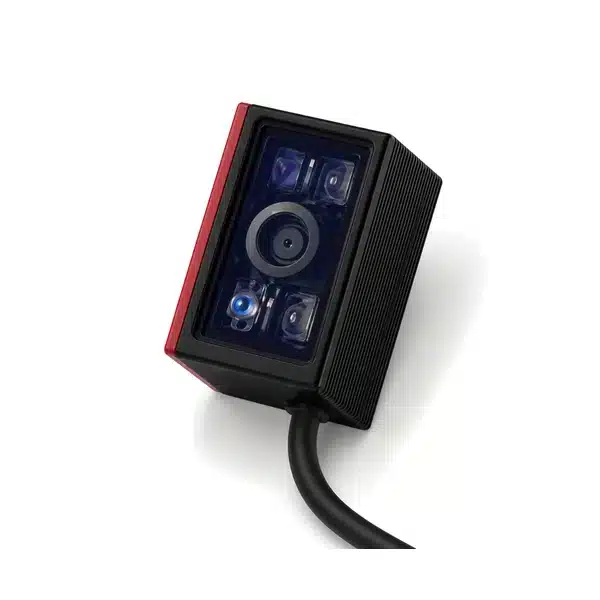

Keyence SR-700 Code Reader, Ultra-compact, Fixed type Code Reader
SR-700 is a Keyence code reader. Keyence lists this part in the catalog as “Ultra-compact, Fixed type Code Reader”. Autofocus and liquid-lens designs hold a read across varying part heights without mechanical adjustment. Read range, code type, and communication interface determine which model fits an application. Applications include work-in-process tracking and shipment verification. Match the reader to the system already installed on the line.
Specifications
| Product Code | SR-700 |
| Brand | Keyence |
| Product Category | Barcode Readers Barcode Scanners |
| Supply Voltage | 5 VDC +5 %, -10 % |
| Current Consumption | 630 mA or less |
| Control Output | 4 NPN open collector outputs (OUT1 to 4) 30 mA or less (24 V or less) Residual voltage 0.8 V or less, leakage current 0.1 mA or less |
| Output Details | 60 µW |
| Pulse Duration | 200 µs |
| Light Source | Visible semiconductor laser (Wavelength : 660 nm) |
| Light Source | High intensity red LED |
| Laser Class | Class 1 Laser Product (IEC60825-1, FDA (CDRH) Part 1040.10 *1 ) |
| Barcode | CODE39, ITF, 2of5 (Industrial 2of5), COOP 2of5, NW-7 (Codabar), CODE128, GS1-128, GS1 DataBar, CODE93, JAN/EAN/UPC, Trioptic CODE39, CODE39 Full ASCII, Pharmacode |
| 2D Code | QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417, Micro PDF417, GS1 Composite (CC-A, CC-B, CC-C) |
| Weight | Approx. 160 g (including cable) |
| Ambient Temperature | 0 to +45 °C 32 to 113 °F |
- Brand: Keyence
Mfr # SR-700
$432.62
Delivery by Mon, Aug 31
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
