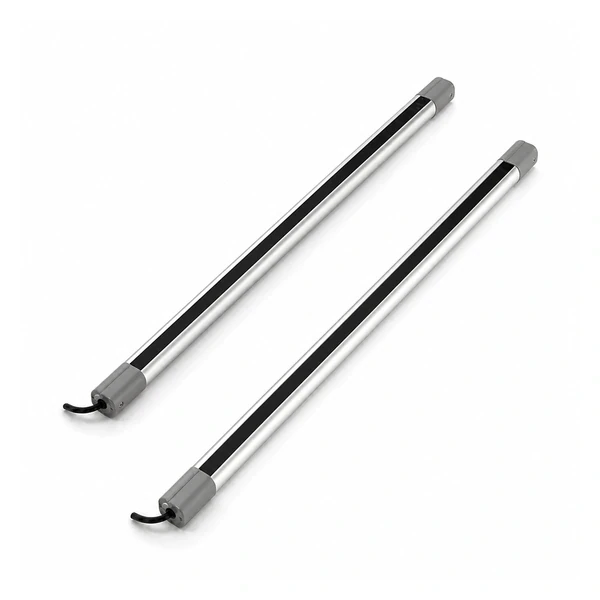

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence SL-V72H Safety Light Curtain, General-purpose Type, 72 Optical Axes
The SL-V72H from Keyence is a safety light curtain component. Keyence catalogs the SL-V72H as a main unit with 72 optical axes. Safety light curtains guard an access opening by detecting intrusion into the protected field and commanding a stop. Typical duty covers load and unload openings where a fixed guard would block the operator. Emitters, receivers, cables, and brackets are separate items, so confirm exactly what you need.
Specifications
| Product Code | SL-V72H |
| Brand | Keyence |
| Product Category | Safety Products Machine Safety Light Curtains |
| Supply Voltage | 24 VDC +10 %, -20 %, Ripple (P-P) 10 % or less |
| Output Details | 2 outputs each for PNP and NPN. Can be changed by using the connector cable. |
| Detection Capability | ø0.98" ø25 mm |
| Working Distance | 0.1 to 7 m |
| Light Source | Infrared LED (850 nm) |
| Beam Axis Spacing/lens Diameter | 20 mm/ø5 mm 0.79"/ø0.20" |
| Operating Ambient Temperature | -10 to +55 °C 14 to 131 °F (No freezing) |
| Operation Mode | Turns on when no interruptions are present in the detection zone (excluding when the muting function is used) |
| Effective Aperture Angle | Max. ±2.5 ° (When operating distance is 3 m 98.23' or more) |
- Brand: Keyence
Mfr # SL-V72H
$3,082.62
Delivery by Thu, Aug 27
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
