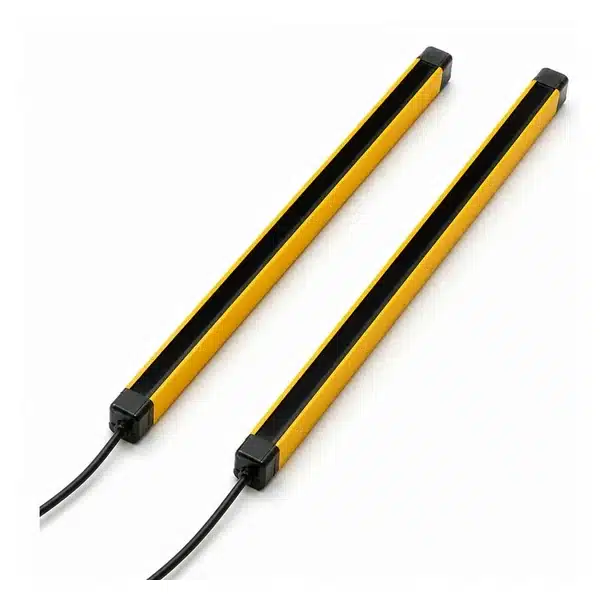

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence GL-R60H Safety Light Curtain, Hand-protection Type, 60 Optical Axes
The Keyence GL-R60H is a safety light curtain component. Keyence catalogs the GL-R60H as a main unit with 60 optical axes. Emitter and receiver are installed as a matched pair, with beam count and protective height defining the model. Machine builders use light curtains where frequent operator access is required. Verify the required safety level with your risk assessment before installation.
Specifications
| Product Code | GL-R60H |
| Brand | Keyence |
| Product Category | Safety Products Machine Safety Light Curtains |
| Supply Voltage | 24 VDC ±20%, ripple (P-P) 10% or less, Class 2 |
| Detection Capability | ø0.98" ø25 mm |
| Detection Height | 46.46" 1180mm |
| Detecting Distance | 0.66 to 49.21' 0.2 to 15 m *1 |
| Light Source | Infrared LED (870 nm) |
| Beam Axis Spacing/lens Diameter | 20 mm / ø5 0.79" / ø0.20" |
| Protection Height | 48.23" 1225mm |
| Total Length | 47.24" 1200mm |
| Operating Ambient Temperature | -10 to +55 °C 14 to 131 °F (No freezing) |
| Number of Beam | 60 |
| Effective Aperture Angle | Max. ±2.5° (When operating distance is 9.84' 3 m or more) |
- Brand: Keyence
Mfr # GL-R60H
$1,433.67
Delivery by Thu, Aug 27
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
