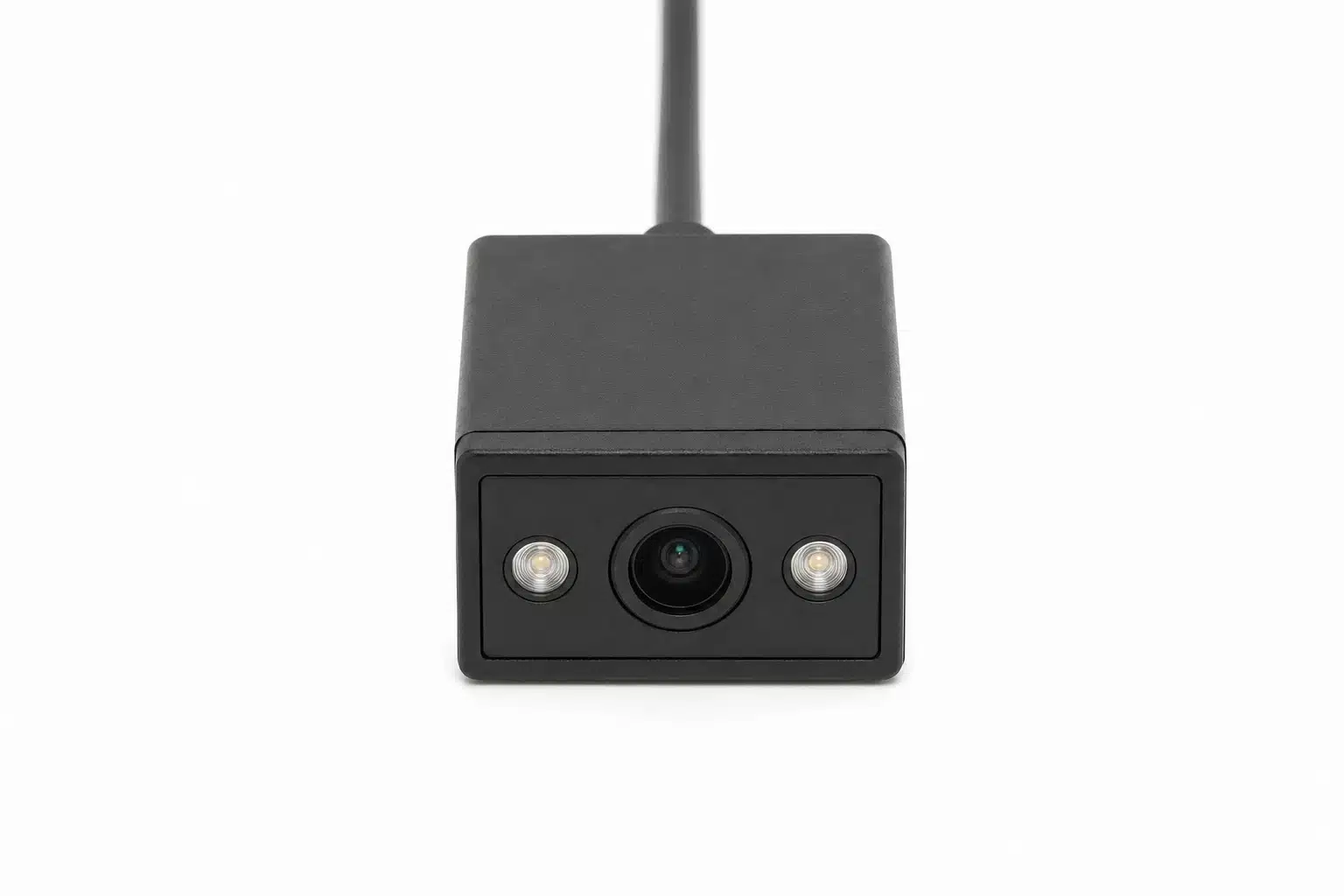

The Keyence IV2-G30F Sensor Amplifier is a powerful vision system controller designed to deliver flexibility, precision, and integration for automated inspection and measurement tasks. As part of Keyence’s IV2 series, it combines user-friendly learning-based setup with advanced tool-driven functionality, making it suitable for a wide range of industrial applications.

One of the key advantages of the IV2-G30F is its dual operating modes. In Learning Mode, operators can quickly set up inspections by allowing the system to automatically learn and configure detection parameters, minimizing the need for technical expertise. For more advanced applications, Standard Mode provides access to an extensive suite of tools, giving users fine control over inspection logic and measurement accuracy. This versatility makes the IV2-G30F equally effective for simple pass/fail checks and complex, multi-parameter inspections.

The amplifier offers a rich selection of built-in tools. With 16 detection tools and one position adjustment tool available per program, it supports functions such as outline recognition, color or brightness area analysis, edge pixel detection, width and diameter measurement, pitch analysis, flaw detection, OCR, and position adjustment. This comprehensive toolset allows manufacturers to solve a broad range of inspection challenges, from verifying dimensions to identifying surface defects or reading printed characters.

The IV2-G30F also excels in data handling and traceability. It can store up to 1,000 images, with configurable save conditions (NG only, NG with OK near threshold, or All), giving users the flexibility to balance storage use with inspection traceability needs. Data and images can be transferred either to an SD/SDHC card or directly to an FTP server, with selectable formats such as BMP, JPEG, IV2P, and TXT. This ensures compatibility with both archiving and analytical workflows.

Integration into industrial systems is simplified through its robust input/output and communication capabilities. The unit provides eight configurable inputs and eight configurable outputs, enabling full customization of signals such as OK/NG judgments, run/busy status, error reporting, and tool-specific results. Built-in Ethernet connectivity supports 100BASE-TX/10BASE-T standards, with compatibility for EtherNet/IP™, PROFINET, and TCP/IP non-procedure communication. Optional support for additional networks such as EtherCAT®, CC-Link, DeviceNet®, PROFIBUS, and RS-232C makes it adaptable to virtually any automation platform.

The system further supports detailed image processing functions including pre-processing filters (expand/shrink, median, average, edge emphasis, inversion, etc.), image capture enhancements like HDR, digital zoom, and brightness correction, and powerful analysis tools such as color histogram, masking, and scaling functions. These features enhance detection reliability even in challenging lighting or surface conditions.

Durability and reliability are also key strengths. The IV2-G30F is built with robust housing materials, operates in temperatures from 0 to +50 °C, and supports humidity ranges of 35–85% RH. Its compact 330 g design makes it easy to install on DIN rails, while built-in indicators (PWR/ERR, OUT, TRIG, STATUS, LINK/ACT, SD) provide immediate feedback on system operation.

In summary, the Keyence IV2-G30F Sensor Amplifier delivers a balance of ease-of-use, advanced functionality, and robust connectivity. With its dual-mode operation, versatile detection tools, strong data management features, and seamless integration into automation systems, it stands as a reliable solution for modern inspection needs in industries such as automotive, electronics, food packaging, and precision manufacturing.
