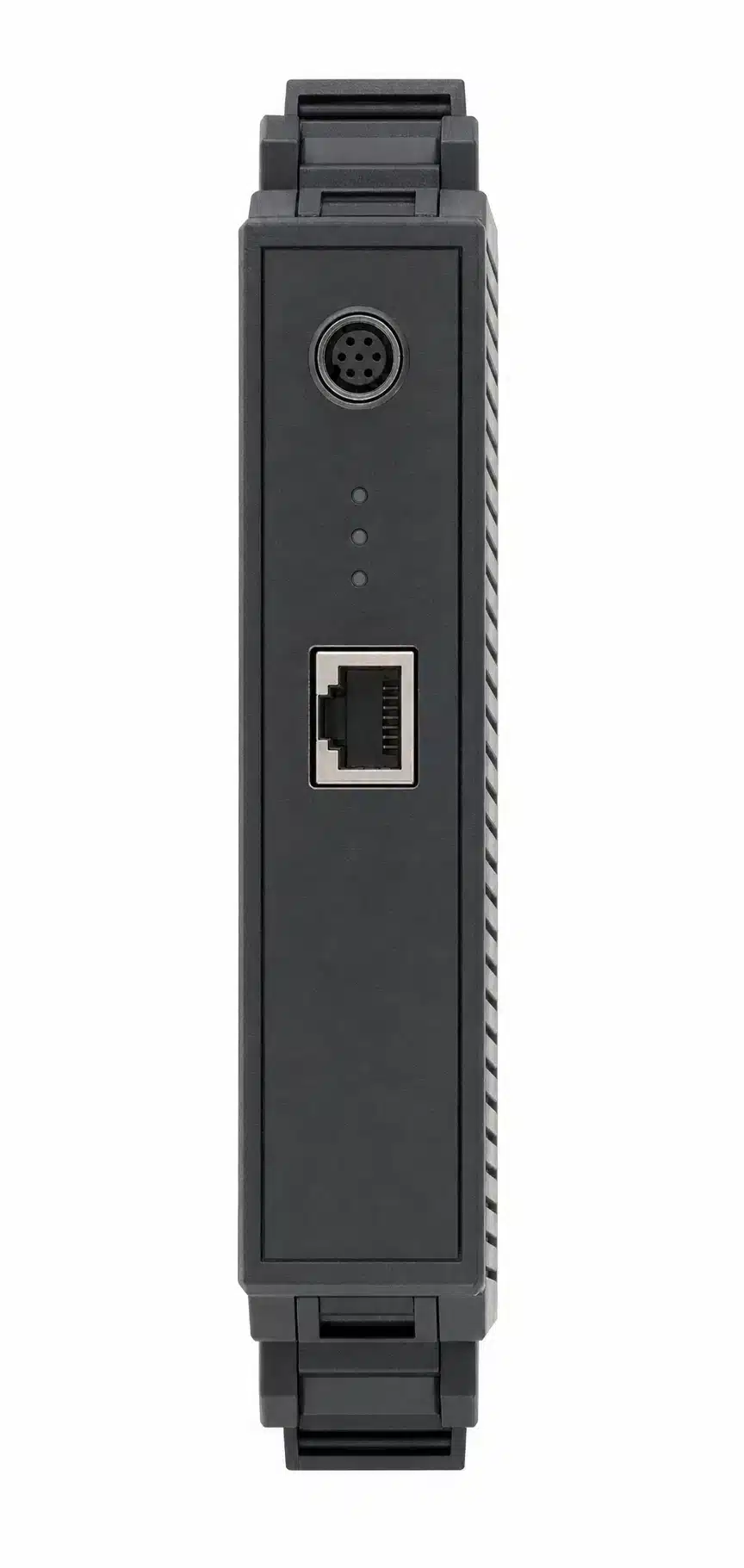

The Keyence IV-HG15 Expansion Unit is an intelligent amplifier module designed to extend the capability of the IV-HG vision sensor series. Tailored for advanced inspection and measurement tasks, the IV-HG15 provides a balance of processing power, flexibility, and adaptability to meet modern automation requirements. As an expansion unit, it integrates seamlessly with a connected IV-HG head, enabling users to expand tool usage, inspection programs, and analytical data management for more demanding applications.

One of the core strengths of the IV-HG15 is its robust tool library. With 16 versatile detection tools, operators can configure inspections that address a wide variety of needs. These include shape detection for geometry verification, area-based analysis for dimension or fill-level checking, edge presence and pitch detection for precise part positioning, and diameter or width/height measurement for component sizing. In addition, OCR capability adds character recognition to the system, allowing the unit to verify printed or engraved text codes with high reliability. The inclusion of high-speed position adjustment, with both one-axis and two-axis configurations, ensures stable inspection even under variable part placement.

Another critical advantage is the program and image management capacity. The IV-HG15 supports up to 32 switchable inspection programs, which allows rapid deployment across different products or production lines. This is further complemented by its ability to store inspection image history, with up to 100 images when using a color type head or 300 images with a monochrome type head. Operators can configure whether only NG (No Good) images are saved for troubleshooting or whether all inspection images are archived for full traceability. This flexibility enables manufacturers to balance storage efficiency with quality assurance needs.

To enhance operational oversight, the unit provides rich analysis functions. Users can choose between statistical outputs, histograms, and matching rate lists depending on the required level of detail. Statistical analysis captures key metrics such as maximum, minimum, average, and latest processing times, along with counts of OK/NG judgments. Histograms display frequency distributions for matching rates, making it easier to identify trends or process drifts. The matching rate list further supports advanced evaluation by providing judgment results and matching performance on a tool-by-tool basis. Together, these features make the IV-HG15 a powerful diagnostic and process monitoring tool.

Finally, the expansion unit is designed with flexibility in data handling. Operators can configure conditions for image storage and analysis to suit their workflow, reducing unnecessary data overload while retaining critical information. Combined with Keyence’s user-friendly setup interface and robust integration with automation systems, the IV-HG15 ensures both high inspection reliability and ease of use.

In summary, the Keyence IV-HG15 expansion unit enhances the power of IV-HG vision systems by providing multi-tool inspection capabilities, program versatility, detailed analysis, and efficient data management. It is an ideal choice for manufacturers seeking to improve inspection accuracy, increase line flexibility, and gain deeper insights into process performance.
