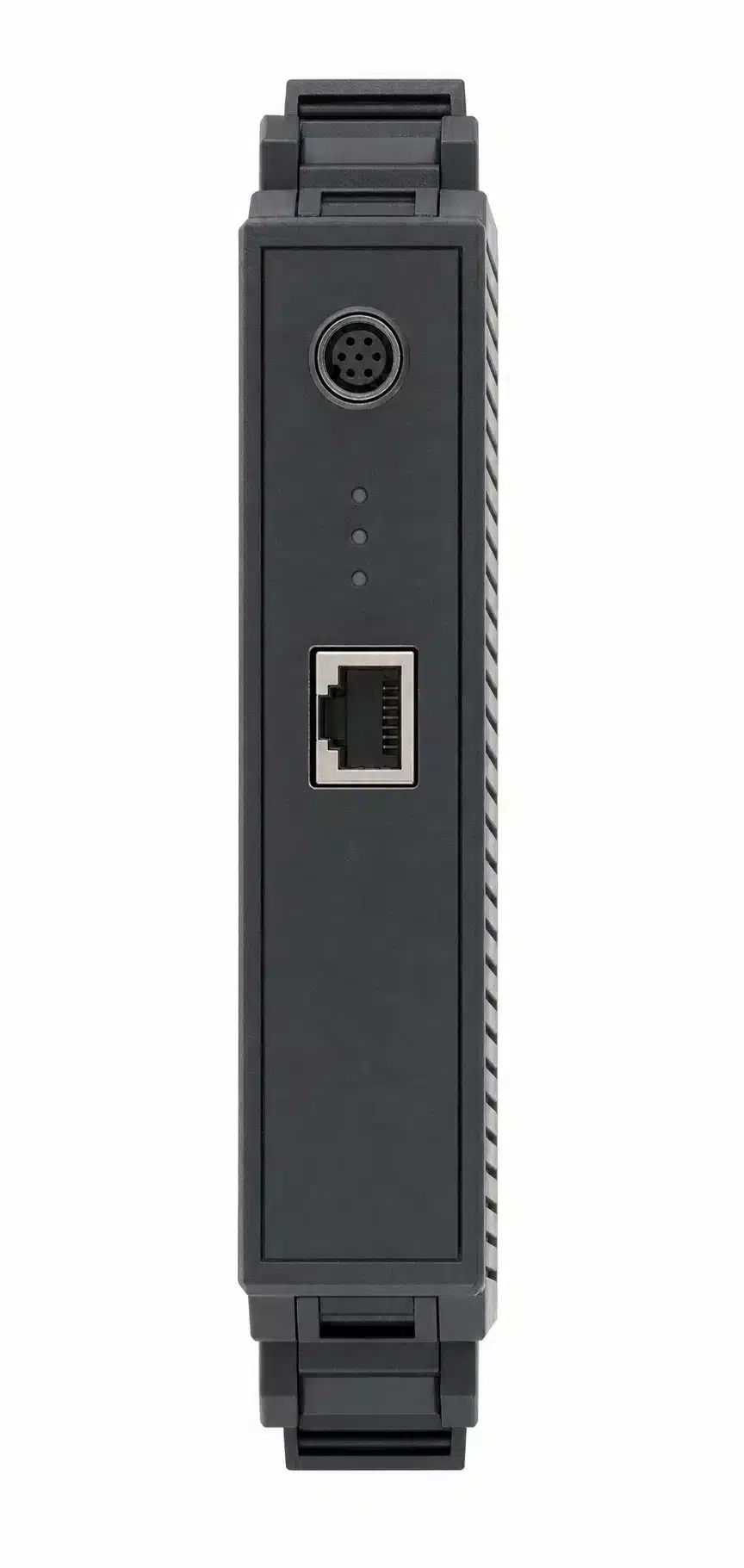

Keyence IV-HG10 Vision Sensor Amplifier, Sensor Amplifier for IV-HG
IV-HG10 is a Keyence IV series vision sensor component. Keyence catalogs the IV-HG10 as a main unit. A separate amplifier or setup tool is required on some models to configure and monitor the sensor. Machine builders fit vision sensors where several checks must happen at one station. Amplifier units, cables, and mounting hardware may be separate items.
Specifications
| Product Code | IV-HG10 |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Vision Sensors |
| Supply Voltage | 24 VDC ±10 % (including ripple) |
| Current Consumption | 0.8 A or less. 1.5 A or less when also using an expansion unit (IV-HG15). (The output load is excluded.) |
| Weight | Approx. 150 g |
| Connector Type | RJ-45 8pin connector *10 |
| Ambient Temperature | 0 to +50 °C 32 to 122 °F (No freezing) *11 |
| Switch Settings (Programs) | 32 programs |
| Number | Detection tools: 16 tools, position adjustment tool: 1 tool *4 |
| Numbers | When using a color type head: 100 images *5 , when using a monochrome type head: 300 images *6 *7 |
| Condition | NG only/All is selectable *7 |
| Analysis Information | OFF/Statistics/Histograms/Matching rate list is switchable Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs Matching rate list: Judgment results list by tools, matching rate list by tools, judgment bar list by tools *8 |
- Brand: Keyence
Mfr # IV-HG10
$1,749.93
Delivery by Wed, Aug 12
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
