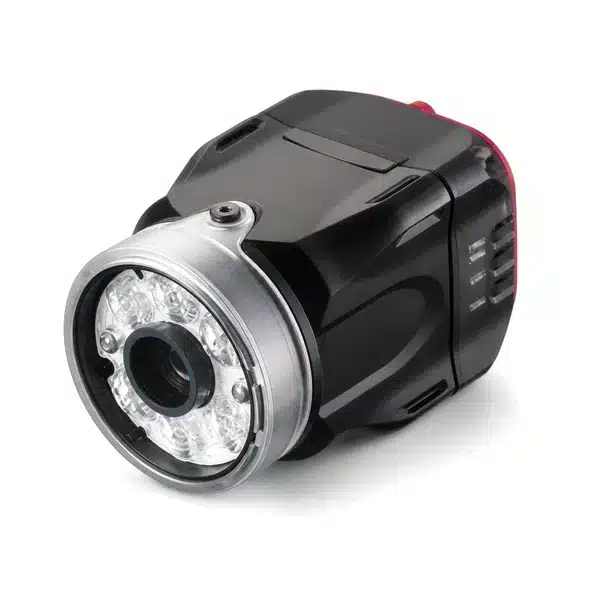

Keyence IV-H2000MA Vision Sensor, Long range, Automatic focus model
Keyence’s IV-H2000MA is part of the IV vision sensor system. This variant is supplied with automatic focus and long-distance capability. Color and monochrome variants suit different inspection tasks and lighting conditions. A separate amplifier or setup tool is required on some models to configure and monitor the sensor. Applications include mistake-proofing steps that a single photoelectric sensor cannot cover. Verify the working distance and field of view for your fixture.
Specifications
| Product Code | IV-H2000MA |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Vision Sensors |
| Supply Voltage | 24 VDC ±10 % (including ripple) |
| Current Consumption | 0.6 A or less |
| Installed Distance | 300 to 2,000 mm 11.81" to 78.74" |
| View | Installed distance 300 mm 11.81" : 45 (H) x 33 (V) mm 1.77" (H) x 1.30"(V) to installed distance 2,000 mm 78.74" : 300 (H) x 225 (V) mm 11.81" (H) x 8.86" (V) |
| Pixel | 752 (H) x 480 (V) 29.61" (H) x 18.90" (V) |
| Focus Adjustment | Auto *1 |
| Illumination | Infrared LED |
| Lighting Method | Pulse lighting/DC lighting is switchable |
| Weight | Approx. 270 g |
| Connector Type | M12 4pin connector *10 |
| Ambient Temperature | 0 to +50 °C 32 to 122 °F (No freezing) |
| Exposure Time | 1/10 to 1/25,000 |
- Brand: Keyence
Mfr # IV-H2000MA
$1,800.76
Delivery by Mon, Aug 31
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
