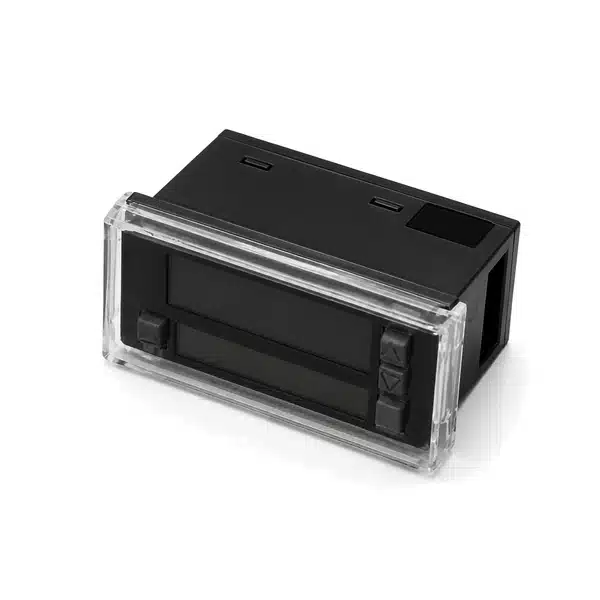

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence AP-V85W Pressure Sensor Amplifier, Amplifier Unit, Panel Mount Type
Supplied under part number AP-V85W, this item is a Keyence pressure measurement component. Keyence catalogs the AP-V85W as an amplifier unit with an NPN output and panel mounting. Positive, negative, and compound pressure variants cover pneumatic, vacuum, and combined circuits. It is used to monitor vacuum pick-up heads, clamping circuits, and compressed air supply. Heads, amplifiers, fittings, and cables may be ordered separately.
Specifications
| Product Code | AP-V85W |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Pressure Sensors |
| Supply Voltage | 12 to 24 VDC Ripple (P-P) 10% or less |
| Control Output | NPN (PNP) open collector x 2 channels (N.O./N.C. selectable), 40 VDC (30 VDC) max., 100 mA max. with residual voltage of 1 V max. |
| Analog Output | 4 to 20 mA, Maximum load resistance: 260Ω . |
| Display Resolution | AP-10SK/AP-11SK: Standard mode 0.1inchHg, High-resolution mode 0.01inchHg AP-12SK:Standard mode/0.01PSI, High-resolution mode/0.001PSI AP-13SK:Standard mode/0.1PSI, High-resolution mode/0.01PSI AP-14SK:Standard mode/1PSI, High-resolution mode/0.1PSI AP-15SK/AP-16SK:Standard mode/10PSI, High-resolution mode/1PSI |
| High-resolution | 0.1% of F.S.) |
| Hysteresis | Variable (Standard: 0.5% of FS |
| Weight | Approx. 85 g |
| Ambient Temperature | -10 to +50°C ( 14 to 122°F ), No condensation |
| Eco Mode | 12V:1020mW(85mA) or less 24V:1200mW(50mA) or less *1 |
| Normal | 12V:1380mW(115mA) or less 24V:1920mW(80mA) or less *1 |
- Brand: Keyence
Mfr # AP-V85W
