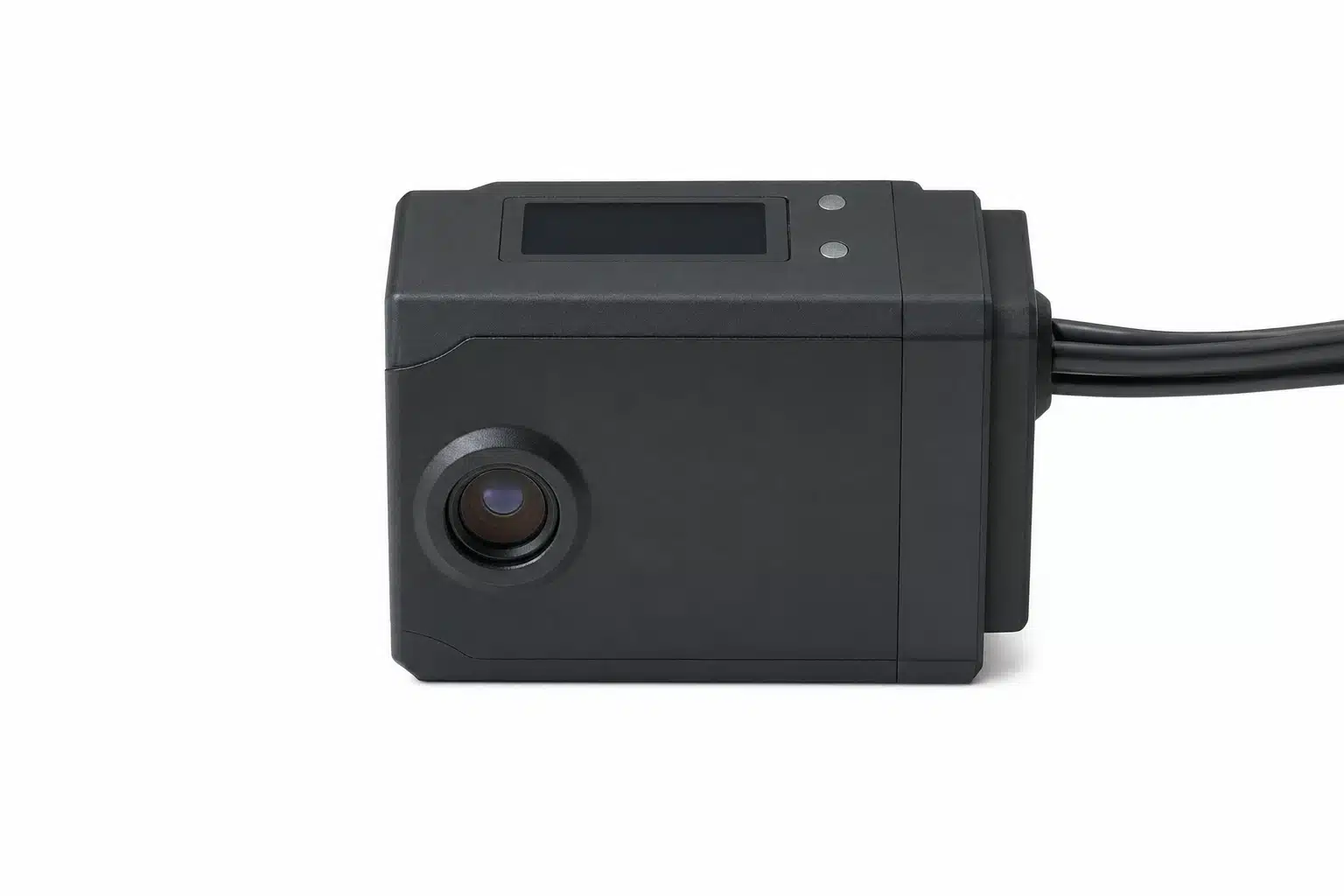

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence AI-B100 Pattern Matching Sensor Amplifier, Built-in Amplifier 100mm
Supplied under part number AI-B100, this item is a Keyence IV family vision sensor component. Keyence catalogs the AI-B100 as an amplifier unit. The IV platform packages camera, lighting, and processing into a self-contained sensor that is configured rather than programmed. Typical duty covers assembly verification, cap and label checks, and part discrimination. Verify the working distance and field of view for your fixture.
Specifications
| Product Code | AI-B100 |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Vision Sensors |
| Supply Voltage | 20 to 30 VDC, including Ripple (P-P) 10 % |
| Current Consumption | 0.3 A or less (power voltage at 20 V, excluding the output load) |
| Digital Zoom | 1X to 4X (17 steps) adjustment, zoom position adjustment *1 |
| Response Time | Switchable between 3 ms/10 ms/20 ms/50 ms/100 ms |
| Installation Distance | 90 to 110 mm 3.54 to 4.33" |
| Detection Modes | Presence check mode / Difference check mode / Feeder mode |
| Light Source | Red LED (660 nm) |
| Light Receiving Element | BW CMOS |
| Lighting Method | Pulse lighting |
| Weight | Approx. 120 g (including polarized filter) |
| Ambient Temperature | -10 to +50 °C 14 to 122 °F (No freezing) |
| 1X Zoom to 4X Zoom | 8 × 8 mm 0.31 × 0.31" to 32 × 32 mm 1.26 × 1.26" *1 |
- Brand: Keyence
Mfr # AI-B100
$3,844.85
Delivery by Wed, Aug 12
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
