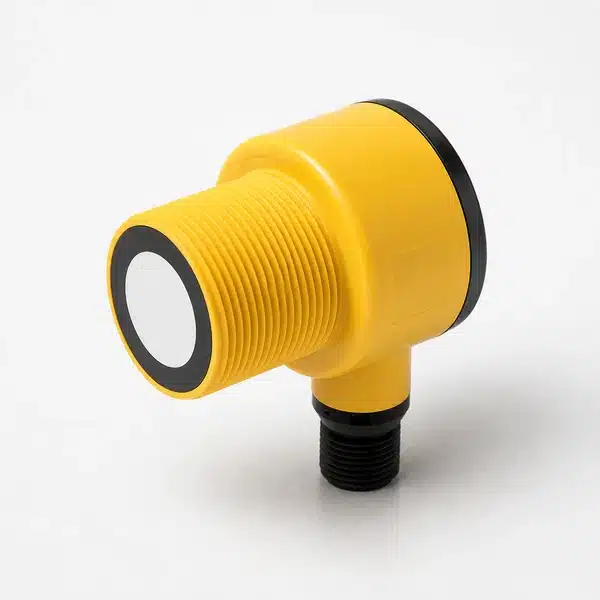

Banner T30UXDBQ8 Ultrasonic Sensors
Banner Engineering part T30UXDBQ8 supplies ultrasonic sensor functionality. Key details include 200 mm – 2 m sensing range, 10–30 V DC input, and NPN PNP NO NC selectable output configuration. The model also specifies 4-pin M12 Integral quick-disconnect. The specification targets tank monitoring, material handling, and presence detection where engineers must confirm the specified sensing range, output format, connection, and environmental rating.
Specifications
| Part Number | T30UXDBQ8 |
| Manufacturer | Banner |
| Category | Automation and Controls Sensors Ultrasonic Sensors |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Supply Voltage | 10-30 V dc |
| Max Sensing Distance (mm) | 2000 |
| Minimum Sensing Distance (mm) | 200 |
| Minimum Response Time (ms) | 92 |
| Sensing Beam | Ultrasonic |
| Primary Housing Material | PBT |
| Housing Style | Barrel |
| Connection | Integral QD |
| Max Operating Temperature (C) | 70 |
| Min Operating Temperature (C) | -40 |
- Brand: Banner Engineering
Mfr # T30UXDBQ8
