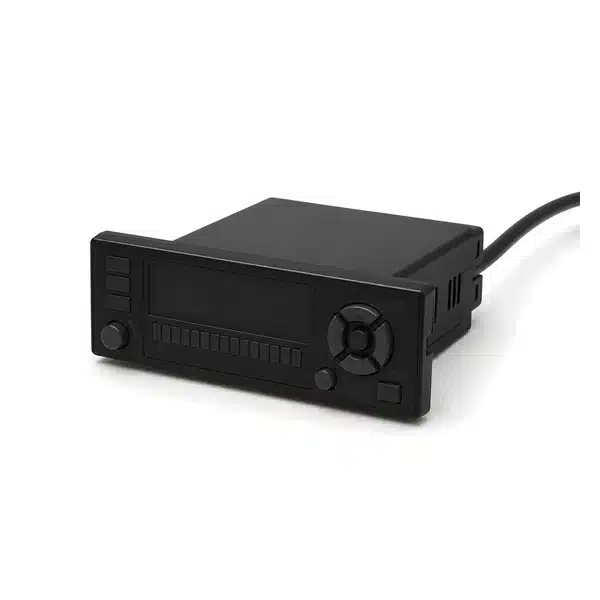

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Keyence GT2-75N Digital Contact Sensor Amplifier, Amplifier Unit
The Keyence GT2-75N is a GT family contact measurement component. Keyence catalogs the GT2-75N as an amplifier unit with an NPN output and panel mounting. Contact measurement gives stable readings on surfaces where color, gloss, or transparency would upset an optical sensor. Typical duty covers inline quality gates, assembly verification, and setup measurement. Probes and amplifier units are separate items, so confirm which part you need.
Specifications
| Product Code | GT2-75N |
| Brand | Keyence |
| Product Category | Automation and Controls Sensors Contact Displacement Sensors (Probes) |
| Power Supply Voltage | 10 to 30 VDC, including 10 % ripple (P-P), Class 2 *1 |
| Output Details | NPN output |
| Power Saving (Eco) | 1,700 mW max. (30 V, 56.7 mA max.) |
| Response Time | hsp(3)/5/10/100/500/1,000 ms (When using GT2-Pxxx, hsp(12)/20/40/400/2,000/4,000 ms) |
| Display Resolution | 0.1 μm 0.004 Mil |
| Measured Value Display | 6 + 1/2-digit 7-segment LED (red) |
| Other Displays | 2-color, 13-level bar LED display (red, green), indicators (red, green) |
| Weight | Approx. 140 g (including panel mounting bracket, protective front cover and power cable) |
| Ambient Temperature | -10 to +50 °C 14 to 122 °F (GT2-71MCN/71MCP: -10 to +45 °C 14 to 113 °F when expansion unit (s) is connected) |
| Main Unit/expansion Unit | Main unit |
| Normal | 2,200 mW max. (30 V, 73.3 mA max.) |
- Brand: Keyence
Mfr # GT2-75N
$236.62
Delivery by Wed, Oct 14
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
