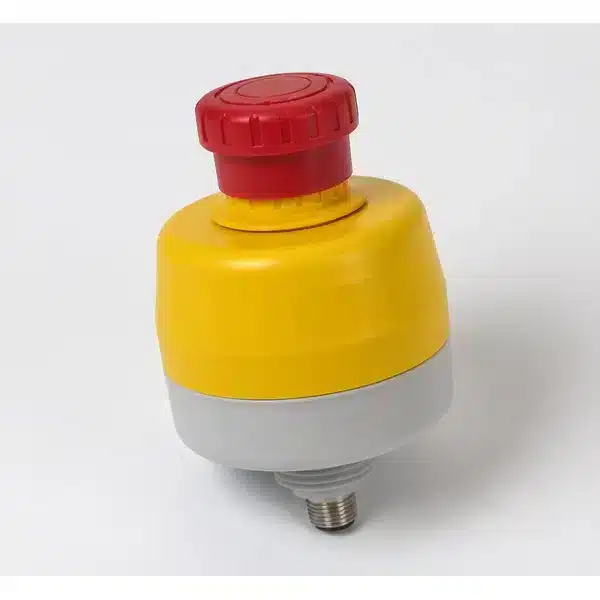

Image is a representation for illustration; not a photo of the actual item. Packaging, labeling, and appearance may vary by source.
Banner SSA-EB1PLXR-02ECQ5B Emergency Stop Buttons
Banner Engineering configures SSA-EB1PLXR-02ECQ5B as a safety-switch actuator within the 30 mm Mount Emergency Stop Buttons. Its documented configuration combines red-Flash Illuminated Base, 40 mm Actuator, and IP65 ingress protection. An additional model-specific detail is contacts: 2 NC. In service, it supports machine building, control-system maintenance, and factory automation while keeping the documented electrical interface, mechanical fit, and operating environment central to selection.
Specifications
| Part Number | SSA-EB1PLXR-02ECQ5B |
| Manufacturer | Banner |
| Category | Safety Products Machine Safety |
| IP Rating | IP65 |
| Supply Voltage | 12-30 V dc |
| Primary Housing Material | Polycarbonate |
| Housing Style | Base |
| Connection Type | M12 |
| Connection | Integral QD |
| Min Operating Temperature (C) | -25 |
| Max Operating Temperature (C) | 55 |
| Device Type | Push Button |
| Mounting Thread/Style | 30 mm |
| Contact Quantity | 2 NC |
| Contact Rating | 2 A @ 24 V dc |
- Brand: Banner Engineering
Mfr # SSA-EB1PLXR-02ECQ5B
$215.90
Delivery by Wed, Oct 28
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
