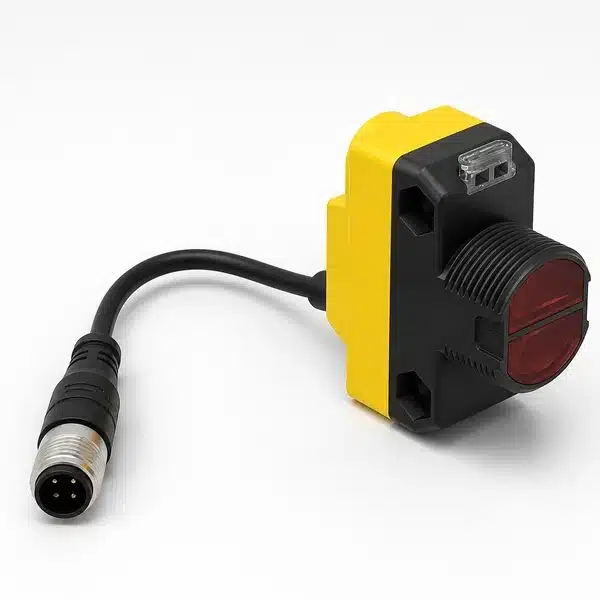

Banner QS18VP6DQ5 Photoelectric Sensors
Banner Engineering configures QS18VP6DQ5 as a photoelectric sensor. Its documented configuration combines diffuse sensing, 450 mm sensing range, and 10–30 V DC input. An additional model-specific detail is Complementary Solid-State PNP output configuration. In service, it supports conveyors, packaging lines, positioning systems, and inspection stations while keeping the specified sensing mode, working range, output, response, and connection method central to selection.
Specifications
| Part Number | QS18VP6DQ5 |
| Manufacturer | Banner |
| Category | Automation and Controls Sensors Photoelectric Sensors |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Supply Voltage | 10-30 V dc |
| Max Sensing Distance (mm) | 450 |
| Output response time (ms) | 0.6 |
| Sensing Beam | Infrared LED |
| Primary Housing Material | ABS |
| Housing Style | Rectangular w/M18 Mount |
| Connection | Pigtail QD |
| Min Op. Temperature (C) | -20 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Repeatability (µs) | 150 |
- Brand: Banner Engineering
Mfr # QS18VP6DQ5
$96.90
Delivery by Mon, Aug 31
Availability: In Stock
- 12-month warranty
- 30-day returns
- Free shipping: $50+ US · $350+ International
- Sourced & inspected
