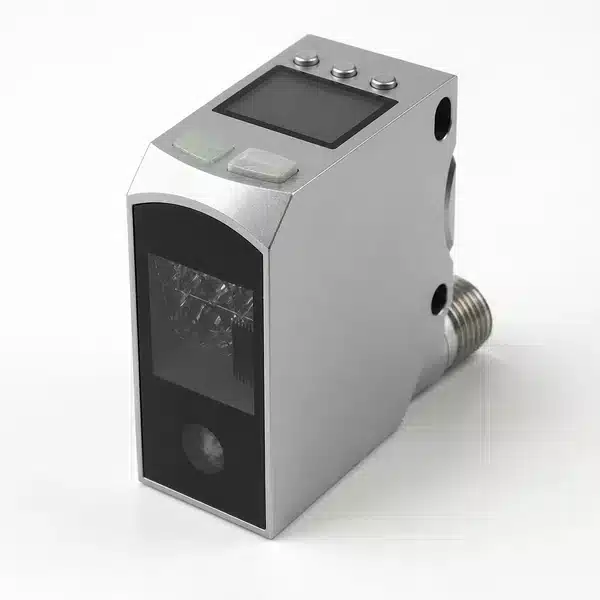

Banner QCM50-K1D60-Q8-4 Registration Mark Sensor
For noncontact detection or measurement on automated equipment, the Banner Engineering QCM50-K1D60-Q8-4 serves as a measurement sensor from the QCM50 Series Color Sensor. Manufacturer specifications call out color Sensor, 20–150 mm sensing range, and 10–30 V DC input; they also identify 1 Discrete PNP/NPN output configuration. Machine builders can apply it in conveyors, packaging lines, positioning systems, and inspection stations after confirming the specified sensing mode, working range, output, response, and connection method.
Specifications
| Part Number | QCM50-K1D60-Q8-4 |
| Manufacturer | Banner |
| Category | Automation and Controls Sensors Photoelectric Sensors |
| IP Rating | IP67, IP69K |
| NEMA / UL Type Rating | NEMA 4X |
| Supply Voltage | 18-30 V dc |
| Max Sensing Range (mm) | 150 |
| Output response time (ms) | 33 to 0.33 |
| Sensing Beam | Visible White LED |
| Sensing Beam Wavelength | Broad Spectrum White |
| Primary Housing Material | Zinc Die-Cast, Matte Chrome Plating |
| Connection | Integral QD |
| Min Op. Temperature (C) | -20 |
| Max Op. Temperature (C) | 55 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
