Signal Conditioners and Isolators

Choosing Signal Conditioners and Isolators components

Signal conditioner selection comes down to the input signal, the desired output signal, whether isolation is required, and any signal processing (linearization, scaling, alarm setpoints) needed in the conditioner itself. Industrial signals look standardized but mixing PLC input expectations with sensor output realities is the most common cause of analog troubleshooting time.

Specs to confirm before ordering:

Input signal type: 4–20 mA active vs. passive, 0–10 V, ±10 V, thermocouple (specific type), RTD (Pt100/Pt1000), bridge millivolt, digital pulse, contact, Namur, PNP, NPN
Output signal type: 4–20 mA active/passive, 0–10 V, RS-485 Modbus, contact (relay), Ethernet
Isolation: 3-port (input/output/power isolated), 2-port (only input-output), or none
Loop-powered vs. supply-powered — loop-powered conditioners draw from the 4–20 mA loop; supply-powered need 24 V
Number of channels — single, dual, quad, or multi-channel
Mounting: DIN-rail (most common), head-mount for transmitter-style temperature conditioners, rack-mount
Configuration: DIP-switch setpoints, software-configurable via USB or magnetic stylus, or fixed-range
Hazardous-area approvals if used in classified locations
Linearization curves built-in for thermocouples and process-specific signals

Common gotchas: an "active" 4–20 mA signal source supplies its own loop current and connects to a passive input (PLC analog card without loop power). A "passive" 4–20 mA transmitter (loop-powered) needs the receiving device to supply the loop power. Mixing active source with active receiver gives no signal; mixing two passive devices gives no signal. Isolators are often confused with simple repeaters — a repeater passes the signal through but does not provide galvanic isolation, which means ground loops still cause errors. Thermocouple transmitters need the correct thermocouple type set in configuration; using a T-type transmitter on a K-type thermocouple gives a usable but inaccurate signal.

Typical applications: isolating sensor signals from a noisy PLC ground, converting a 4–20 mA process signal to 0–10 V for an old analog input card, splitting one transmitter output to two SCADA systems and one local indicator, converting RTD or thermocouple to 4–20 mA at the head, and repeating PNP sensor outputs to multiple PLC inputs.

For obsolete signal conditioners, send the OEM part number for a sourcing quote.

Do you stock obsolete signal conditioners and isolators?

Yes. Discontinued Phoenix Contact MINI-Analog first generations, retired Pepperl+Fuchs K-System codes, end-of-life Dataforth DSCA, and earlier Weidmüller WAS are sourced through our supplier network.

4–20 mA active vs. passive — what's the difference?

Active devices supply their own loop current and connect to passive inputs. Passive (loop-powered) devices need the loop power supplied from elsewhere. Mixing creates either no signal or short-circuit conditions. Match active source to passive receiver, or vice versa.

Do I really need an isolator?

Yes for any installation with ground potential differences (separate ground references between field and control room), long cable runs, or noise-prone environments near VFDs and contactors. Isolation eliminates ground loops and protects the PLC analog card from transient damage.

Can a conditioner handle multiple signals at once?

Multi-channel conditioners exist (2-channel, 4-channel, 8-channel rack-style). They share power and chassis but isolate channels from each other. Useful for dense analog installations where DIN-rail space matters.

Will my saved configuration transfer to a replacement?

For software-configurable units, yes — export configuration in the OEM tool and load onto the new unit. For DIP-switch units, document the switch positions before swapping. For fixed-range units, no configuration is needed.

What is the warranty?

12-month functional warranty. Damage from over-voltage, miswiring (active/passive mismatch), or operation outside rated environment is not covered.

Signal Conditioners and Isolators

Banner PIAT46UTA-VL Fiber Optics

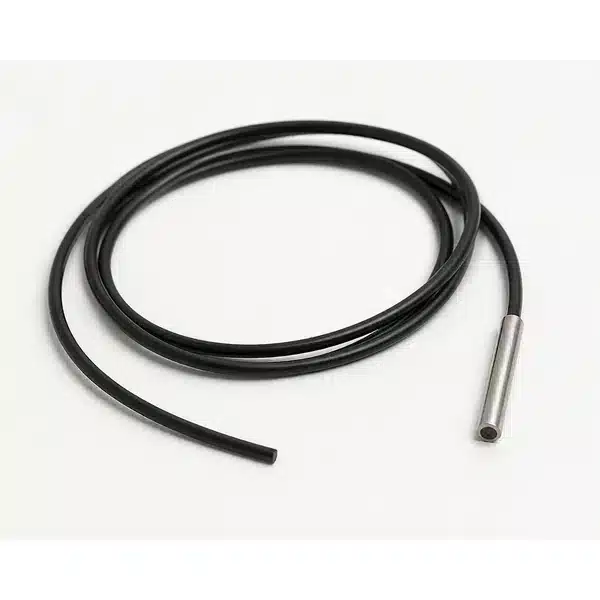

Banner PIFM46U Fiber Optics

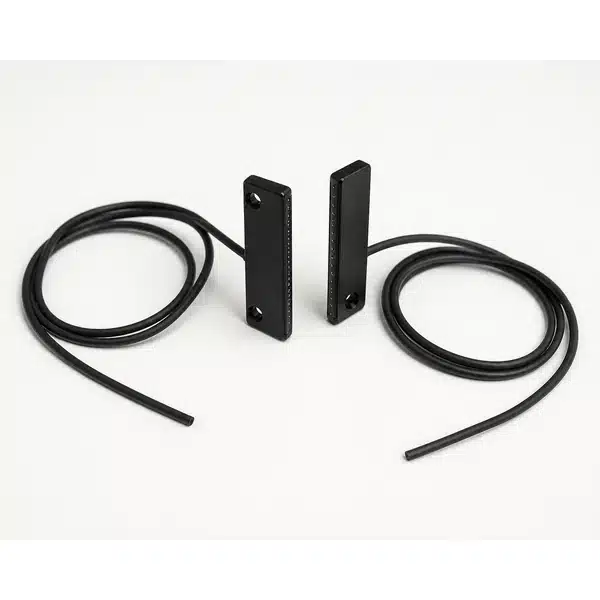

Banner PIR1X166UMPMAL Fiber Optics

ifm efector AC1147 AS-Interface Bus Termination Module

ifm efector AC1258 AS-Interface Power Supply Unit

ifm efector AC2256 AS-Interface Control Cabinet Interface Module

ifm efector AC2484 Compact AS-Interface Interface Module

ifm efector AC3200 AS-Interface Control Cabinet Interface Module

ifm efector AC3202 AS-Interface Control Cabinet Interface Module

ifm efector AC5211 AS-Interface ClassicLine Quick-Mount Module

ifm efector AC5215 AS-Interface ClassicLine Quick-Mount Module

ifm efector AC5233 AS-Interface ClassicLine Quick-Mount Module

ifm efector AC5236 AS-Interface ClassicLine Quick-Mount Module

Pepperl+Fuchs FI-PFH-NS0137-R Industrial Communication Interface Board

Pepperl+Fuchs FS-LB-I Signal Surge Protection Barrier

Pepperl+Fuchs K-LB-1.30 Surge Protection Barriers

Can't Find The Part You Need?
