The IFM TA2502 temperature transmitter is designed for temperature measurement in hygienic process applications where a conventional 4–20 mA signal and IO-Link communication may both be useful. Before specifying it for a new installation or using it as a replacement, buyers should verify more than the part number. The measuring range, process connection, insertion length, output configuration, wiring and wetted materials all need to match the application.
This guide explains the TA2502’s principal published specifications and the checks a maintenance, engineering or purchasing team should complete before ordering. For current availability and ordering information, see the IFM TA2502 product page.
What is the IFM TA2502?

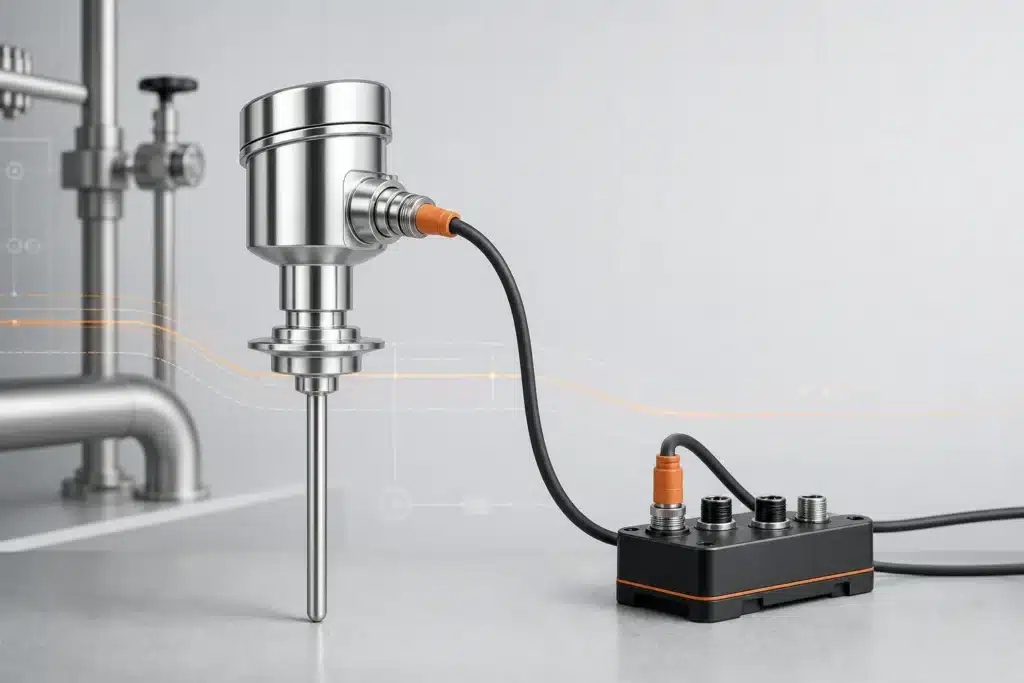

The TA2502 is a compact temperature transmitter in ifm’s range for food-industry process applications. According to ifm’s published product data, it uses a Pt1000 measuring element and provides a configurable analog output with IO-Link communication. Its stainless-steel probe is inserted directly into the process through a G 1/2 external-thread sealing-cone connection.
The device can be a practical choice when a control system needs a standard analog temperature signal today while the plant also wants digital parameter access or diagnostic information through IO-Link. It should not, however, be treated as a universal drop-in replacement for every temperature sensor with a similar-looking housing.
IFM TA2502 specifications at a glance
| Selection point | Published TA2502 specification | Why it matters |
|---|---|---|
| Measuring range | -50 to 200 °C | The process temperature and expected excursions must remain within the approved range. |
| Measuring element | Pt1000, Class A to DIN EN 60751 | This identifies the sensing technology and accuracy class used by the transmitter. |
| Media | Liquids and gases | Material compatibility and process conditions still require application-specific review. |
| Output | One configurable analog output; 4–20 mA and IO-Link | The receiving PLC, controller or IO-Link master must support the chosen configuration. |
| Supply voltage | 18–32 V DC | Verify the available control voltage and the complete circuit design. |
| Process connection | G 1/2 external thread with sealing cone | The process fitting, sealing method and installation procedure must match. |
| Installation length | 30 mm | Probe immersion affects response and whether the sensing tip reaches the intended measurement zone. |
| Probe diameter | 6 mm | Confirm mechanical clearance and compatibility with the process connection. |
| Electrical connection | M12, A-coded, 4-pin connector | The mating cordset, pinout and ingress-protection requirements must be compatible. |
These values are a useful screening checklist, not a substitute for the current manufacturer data sheet, application limits and installation instructions. Specifications may change, and the latest documentation should control the final engineering decision.
How 4–20 mA and IO-Link serve different needs
4–20 mA for conventional control systems
A 4–20 mA signal is widely used for process measurements because it is straightforward to connect to an analog input and is less sensitive to voltage drop than a simple voltage signal over long cable runs. For a replacement project, confirm the analog input type, scaling, load and fault behavior in the controller. A transmitter may power up correctly but still report an incorrect engineering value if the PLC channel is scaled for a different range.
IO-Link for parameterization and digital data
IO-Link provides point-to-point digital communication between a compatible field device and an IO-Link master. In a properly engineered system, it can simplify parameter setting and make standardized device data available to the control or maintenance environment. The presence of IO-Link does not eliminate the need to verify the device’s IODD, master port configuration, cycle requirements and the way the application uses process and diagnostic data.
Plants do not have to adopt every digital feature at once. The important purchasing question is whether the device’s supported operating mode matches the current control architecture and the plant’s future maintenance plan.
Eight checks before ordering a TA2502
1. Confirm the complete part number
Use the label on the installed device, the machine bill of materials and the approved spare-parts list. Similar ifm part numbers may differ in range, probe length, process connection or output. A visual match alone is not enough.
2. Verify the real process-temperature range
Review normal production temperature, cleaning cycles, startup conditions and credible fault temperatures. The selected transmitter must be suitable for the complete operating envelope, not only the normal setpoint.
3. Check the medium and wetted materials
Confirm chemical compatibility with the product, cleaning agents and any sanitizing process. ifm lists stainless steel and additional polymer and elastomer materials among the wetted components. Your engineering or quality requirements may impose further restrictions.
4. Match the process connection and seal
The published G 1/2 external-thread sealing-cone connection must match the installed fitting. Review the manufacturer’s torque, seal and adapter instructions. An incorrect adapter or sealing method can create a mechanical fit while still producing an unacceptable process installation.
5. Confirm insertion length and measurement location
The TA2502 has a published installation length of 30 mm. Ensure that the probe reaches representative process flow, avoids contact with moving parts and is not dominated by pipe-wall temperature. For small pipes or fast-changing processes, measurement location can be as important as transmitter accuracy.
6. Verify the electrical interface
Check the available 18–32 V DC supply, the M12 cordset and the controller input. Compare the existing pinout with the current manufacturer diagram before energizing the circuit. Do not assume that every four-pin M12 temperature device assigns its signals identically.
7. Plan the output configuration
Document whether the application will use 4–20 mA, IO-Link or a staged migration between them. Record the required analog scaling, engineering units, damping or offset settings, and the desired behavior during a sensor fault. If IO-Link is used, keep the approved parameter set with the machine documentation.
8. Validate the replacement after installation
After installation, compare the reported value with a known reference or the plant’s established commissioning procedure. Check for leakage, wiring faults, unstable readings and correct PLC scaling. A successful replacement requires both a mechanically sound installation and a believable process value.
Is the TA2502 a direct replacement for another sensor?
Only a documented comparison can answer that question. Two transmitters can share a temperature range and output type while differing in insertion length, thread, sealing geometry, response time, material approvals, connector assignment or parameter behavior. For an obsolete or unavailable device, build a cross-reference from the original data sheet and the machine requirements rather than substituting by appearance.
Our ifm sensor replacement guide explains a broader cross-reference process. You can also browse ifm efector products and the temperature sensor category for related options.
Information to include in a sourcing request
Providing complete information at the beginning reduces delays and prevents an incorrect substitution. Include:
- the exact manufacturer part number;
- required quantity;
- new, surplus or replacement-condition requirements;
- target delivery date and destination country;
- the original device data sheet or a clear label photograph;
- any required certification, traceability or inspection documentation; and
- whether alternatives are acceptable or the exact part number is mandatory.
If the listed item does not fit the application or the required quantity is unavailable, request a quote with the complete part number and application requirements.
Frequently asked questions
What is the measuring range of the IFM TA2502?
ifm publishes a measuring range of -50 to 200 °C for the TA2502. The allowable process, ambient and installation conditions should still be checked in the current manufacturer documentation.
Does the TA2502 support IO-Link?
Yes. The published product data identifies IO-Link as its communication interface. A compatible IO-Link master and the correct device configuration are required to use digital communication.
Does the TA2502 provide a 4–20 mA output?
Yes. ifm lists one configurable analog output with a 4–20 mA current signal. Confirm controller input compatibility, wiring and scaling during commissioning.
Can I replace a different temperature sensor with the TA2502?
Possibly, but not from the temperature range alone. Compare the process connection, probe dimensions, materials, electrical interface, output behavior and application requirements before approving a substitution.
Manufacturer references
Technical note: This article summarizes manufacturer-published information for product identification and sourcing. Always use the current manufacturer data sheet, installation instructions and your site’s engineering standards for final selection and commissioning.
