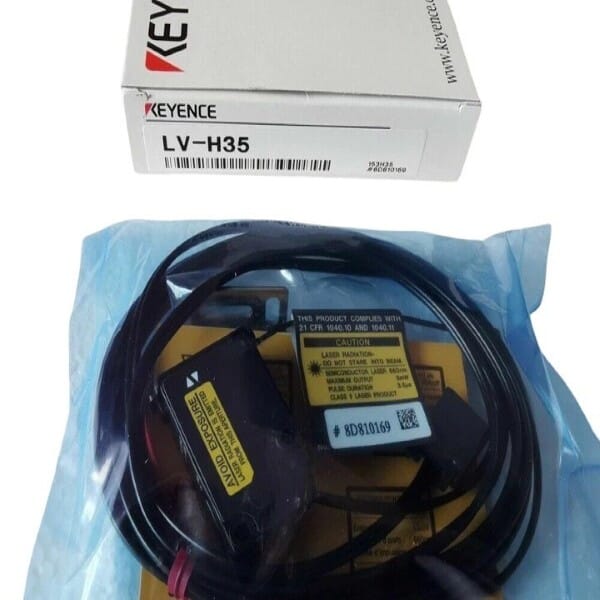

The Keyence LV-H35 Reflective Sensor Head is a compact and highly reliable spot-type laser sensor designed to deliver accurate detection in demanding automation environments. Featuring a straight-beam coaxial optical structure, the LV-H35 ensures precise alignment and superior stability, making it ideal for applications that require pinpoint accuracy and long-term durability.

A key advantage of the LV-H35 is its coaxial optical design, which aligns the emitter and receiver along the same axis. This configuration reduces errors caused by parallax and external reflections, resulting in more stable detection performance even in environments with complex backgrounds. By maintaining a focused and precise beam, the LV-H35 is well-suited for detecting small or reflective objects, surfaces with varying textures, and components that may otherwise challenge conventional sensors.

The unit provides a flexible detection range with three selectable modes: FINE at 150 mm, TURBO at 300 mm, and SUPER at 600 mm. This adaptability allows the LV-H35 to perform effectively in diverse applications, from close-range precision detection of small parts to longer-range monitoring where installation space may require a greater sensing distance. Users can adjust detection settings to balance sensitivity, stability, and distance depending on the operational requirements.

Equipped with a Class II visible red semiconductor laser (660 nm wavelength), the LV-H35 makes setup and alignment straightforward. The visible beam ensures that operators can easily confirm the detection area during installation, minimizing downtime and simplifying integration into existing systems. The clear targeting ability of the red laser also enhances operational accuracy by providing real-time visual confirmation.

Durability is another defining strength of the LV-H35. The sensor is constructed with a glass-reinforced plastic housing, which provides both strength and resistance to mechanical stress while keeping the sensor lightweight at approximately 45 g. The transparent plastic lens cover protects the optical components without compromising detection quality. Together, these materials ensure the unit’s long service life in industrial settings where reliability is essential.

The LV-H35 is also engineered for environmental resistance. It operates within a wide temperature range of -10 to +55 °C and tolerates humidity levels from 35 to 85% RH without condensation, ensuring stable performance in a broad spectrum of industrial conditions. This robust design allows the sensor to function reliably in environments where temperature fluctuations or humidity variations are common.

In summary, the Keyence LV-H35 Reflective Sensor Head offers a combination of precision, adaptability, and durability. Its coaxial optical structure ensures consistent detection accuracy, while its selectable detection ranges and visible red laser provide flexibility and ease of use. Built with industrial-strength materials and environmental resilience, the LV-H35 is an excellent solution for manufacturers seeking a reliable spot-type reflective sensor for automation systems.
