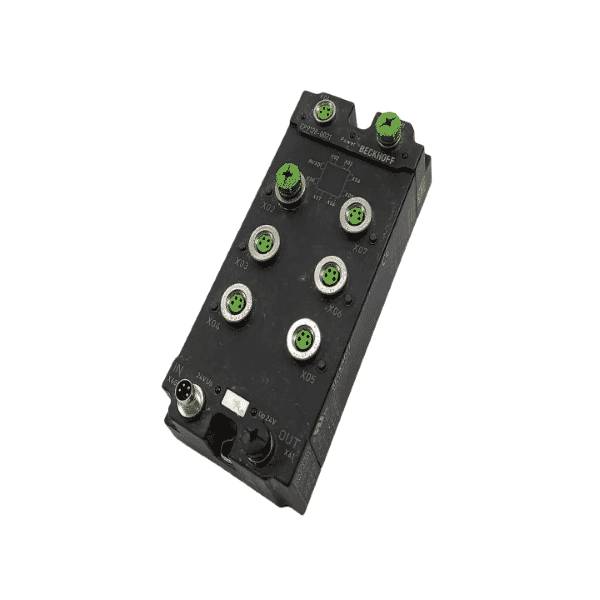

The Beckhoff EP9128-0021 EtherCAT Box is an 8-port EtherCAT junction module designed to simplify the structure and scalability of EtherCAT networks in industrial automation systems. Encased in a rugged, field-mountable housing with M8 shielded connectors, it enables reliable branching of EtherCAT topologies directly at the machine level, eliminating the need for large control cabinets or additional switching hardware.

With eight M8, 4-pin shielded sockets, the EP9128-0021 provides engineers with the flexibility to design EtherCAT networks in star, line, or tree topologies. This adaptability supports modular machine architectures, allowing distributed I/O modules, drives, sensors, and actuators to be connected efficiently within complex systems.

The module is fully compliant with EtherCAT protocol standards and uses 100BASE-TX Ethernet over Cat.5 (or higher) shielded cabling. Each connection can span up to 100 m, giving it excellent reach for large machines, production lines, or decentralised installations. Despite its branching capabilities, the EP9128-0021 introduces only an approximate 1 µs delay per port, ensuring deterministic EtherCAT performance with minimal latency—critical for real-time automation tasks such as motion control, synchronised processes, and precision data acquisition.

Designed for 24 V DC operation, the EtherCAT Box draws its supply directly from the field environment. The robust IP-rated housing makes it resistant to dust, vibration, and mechanical stress, while the M8 connector system ensures secure and reliable communication in challenging industrial conditions. Its compact design allows for direct machine integration, reducing the need for centralised cabinet wiring and improving system modularity.

The primary function of the EP9128-0021 is to serve as a network coupling point, enabling the connection of multiple EtherCAT branches into a single system. By doing so, it increases flexibility in system design and reduces cable runs, installation complexity, and overall wiring costs. This makes it an ideal solution for machine builders, packaging systems, robotics, material handling, and process automation, where scalability and efficient cabling are essential.

Configuration and diagnostics are managed seamlessly via Beckhoff TwinCAT software, ensuring simple integration into the wider automation ecosystem. Engineers can monitor communication quality, check topology status, and detect network issues in real time, improving reliability and reducing commissioning time.

In summary, the Beckhoff EP9128-0021 EtherCAT Box is a powerful and compact 8-port EtherCAT junction designed for flexible network branching in industrial environments. With M8 shielded connectors, 100 Mbit/s communication, minimal latency, and rugged field installation capability, it provides engineers with a highly reliable and scalable solution for building modular, decentralised EtherCAT systems.
