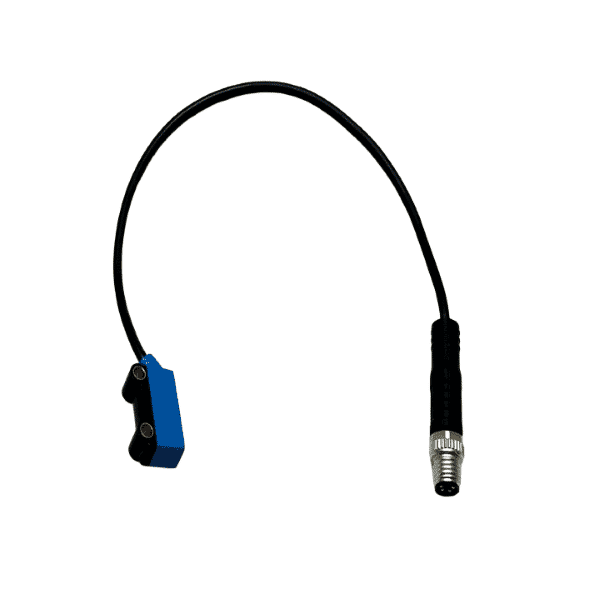

The SICK WTV2S-2P1320 (part number 1064660) is a compact photoelectric sensor designed to provide precise short- to mid-range object detection in industrial automation systems. Its rectangular housing, measuring only 7.7 mm wide, 21.8 mm high, and 13.5 mm deep, enables integration into space-restricted machinery, conveyor systems, and robotic assemblies while maintaining high-performance sensing capabilities.

A key feature of this sensor is its visible red PinPoint LED, which produces a sharp, well-defined light spot. This aids in quick and accurate alignment during installation and ensures ongoing detection accuracy during operation. The LED also facilitates visual monitoring, simplifying troubleshooting and system verification.

The WTV2S-2P1320 employs background suppression technology for reliable detection, even against reflective or complex backgrounds. Its operational range spans 15 mm to 300 mm, with the ability to detect reflective surfaces up to 320 mm. This extended short- to mid-range capability makes it suitable for applications such as part verification, object counting, flow monitoring, and alignment checks on automated production lines.

Speed and precision are hallmarks of this sensor. With a response time under 0.5 milliseconds and a switching frequency up to 1 kHz, it can handle high-speed detection requirements efficiently. The PNP light-switching output, rated up to 50 mA, ensures reliable communication with industrial controllers, PLCs, and other automation equipment, making it a versatile component for integration into various systems.

The sensor operates on a 10–30 V DC supply and draws minimal current (~20 mA), delivering energy-efficient performance without sacrificing speed or reliability. Integrated protections against reverse polarity, overload, and short circuits enhance operational safety and extend the sensor’s lifespan, even in demanding industrial environments.

Mechanically, the IP67-rated housing provides complete protection against dust ingress and temporary water exposure. Constructed from durable ABS/PC materials with PMMA optics, the sensor withstands harsh conditions typically found in packaging, assembly, electronics manufacturing, and logistics applications.

For convenient installation, the sensor is supplied with a 2-meter, 3-wire PVC cable, featuring a slim 3 mm diameter for easy routing in tight or crowded machine layouts.

In summary, the SICK WTV2S-2P1320 combines compact design, reliable short- to mid-range detection, fast PNP switching output, and rugged industrial protection, making it an ideal solution for OEMs, machine builders, and automation engineers who require dependable and space-saving sensors for demanding automation tasks.
