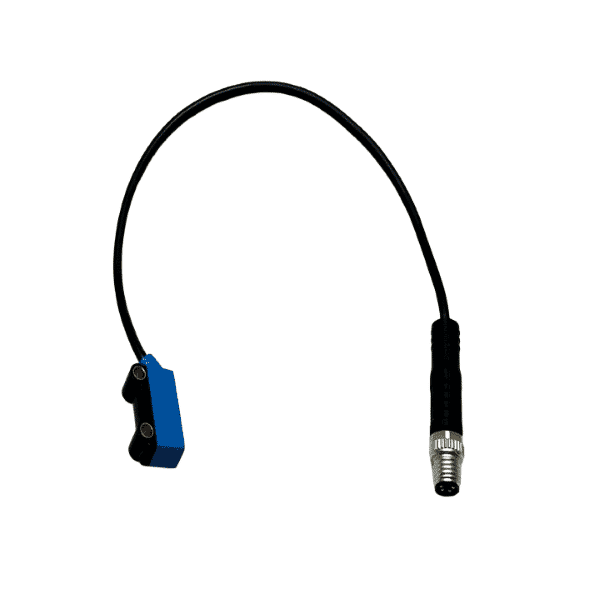

The SICK WTB2S-2F1360 (part number 1064606) is a compact and highly reliable photoelectric proximity sensor engineered to meet the challenges of modern automation. Its miniature rectangular housing—measuring only 7.7 mm wide, 21.8 mm high, and 13.5 mm deep—makes it an excellent solution for applications where installation space is extremely limited.

Equipped with a visible red PinPoint LED, the sensor simplifies setup and alignment by providing a sharp and clearly defined light spot. This visible aid allows technicians to position the sensor quickly and precisely, minimizing commissioning time and ensuring reliable operation from the start.

The WTB2S-2F1360 uses background suppression technology, which allows it to detect objects within a range of 5 mm to 60 mm, with extended capability up to 66 mm on reflective materials. This enables accurate detection of small or varied objects while avoiding interference from background surfaces. Such versatility makes it well-suited for assembly lines, packaging stations, and pick-and-place systems.

Performance is optimized for high-speed industrial processes. The sensor achieves a response time of less than 0.5 ms and supports switching frequencies up to 1 kHz. Its PNP dark-switching output, capable of driving up to 50 mA, ensures rapid and dependable signal transmission to controllers, PLCs, or other automation equipment.

Power requirements are straightforward, with an operating range of 10 V to 30 V DC and a typical current consumption of only 20 mA. Integrated electrical protections—including reverse polarity, output reverse polarity, overload, and short-circuit safeguards—add an extra layer of reliability, preventing damage from wiring errors or system faults.

Durability is a key strength of the WTB2S-2F1360. The sensor is designed with an IP67 protection rating, making it resistant to dust and water ingress for long-term use in demanding environments. The body is built from sturdy ABS/PC materials, with PMMA optics ensuring both optical clarity and resilience against wear.

For ease of installation, the sensor is supplied with a 2-meter, 3-wire PVC cable. With a slim diameter and flexible construction, the cable simplifies routing through machinery while maintaining secure electrical connections.

In summary, the SICK WTB2S-2F1360 combines compact size, fast performance, and robust construction in a single device. Its advanced background suppression, high-speed response, and rugged design make it the perfect choice for machine builders, OEMs, and integrators who require dependable detection in space-restricted, high-demand automation environments.
