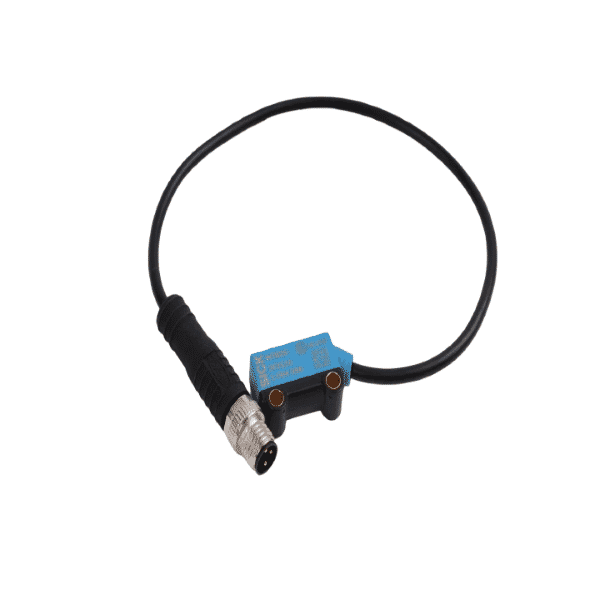

The SICK WTB2S-2F3110 (Part No. 1064396) is a high-precision photoelectric proximity sensor belonging to the W2 miniature series. Designed for demanding automation tasks, it combines a compact footprint with advanced detection performance, making it particularly effective in tight installation spaces or applications that require high levels of accuracy.

At the heart of its design is background suppression technology, which enables the sensor to distinguish target objects clearly while ignoring potential interference from surrounding surfaces. This feature ensures reliable operation in environments where reflections or complex backgrounds could otherwise compromise detection. With a working detection range from 3 mm to 15 mm and an extended maximum reach of up to 18 mm under optimal conditions, the sensor provides flexibility for various small-part handling and positioning tasks.

Equipped with PinPoint LED technology, the WTB2S-2F3110 emits a highly visible red light at 640 nm. This creates a fine, sharply focused spot approximately 2 mm in diameter at an 8 mm distance, allowing operators to quickly align the sensor while maintaining reliable performance even with low-reflectivity or glossy objects. The visibility of the beam not only simplifies installation but also reduces setup errors.

Performance speed is another critical advantage. The sensor delivers a PNP dark-switching output with a response time of less than 0.4 ms. Combined with a switching frequency of up to 1,200 Hz, it is well-suited for applications involving rapid conveyor systems, high-speed robotics, and other fast-moving industrial processes where even minor delays are unacceptable.

Durability is guaranteed through its IP67-rated housing, which shields the unit from dust and water. Constructed from robust ABS/PC plastics with PMMA optics, the sensor is built to withstand mechanical stress and harsh operating conditions. It functions reliably across a broad temperature range of –25 °C to +50 °C and can be stored safely between –40 °C and +75 °C, ensuring long-term stability.

For ease of integration, the WTB2S-2F3110 comes with a 3-pin M8 connector and 200 mm PVC cable, providing straightforward connectivity in industrial setups. Operating on a 10–30 V DC supply with a low current consumption of around 20 mA, it ensures energy-efficient performance while built-in protections against short-circuit, reverse polarity, and overcurrent safeguard both the sensor and connected systems.

In conclusion, the WTB2S-2F3110 strikes an ideal balance of compact design, high detection precision, rapid response, and rugged reliability. It is perfectly suited for industries such as electronics assembly, packaging, robotics, and medical technology, where space is limited, detection accuracy is vital, and reliability under harsh conditions is essential.
