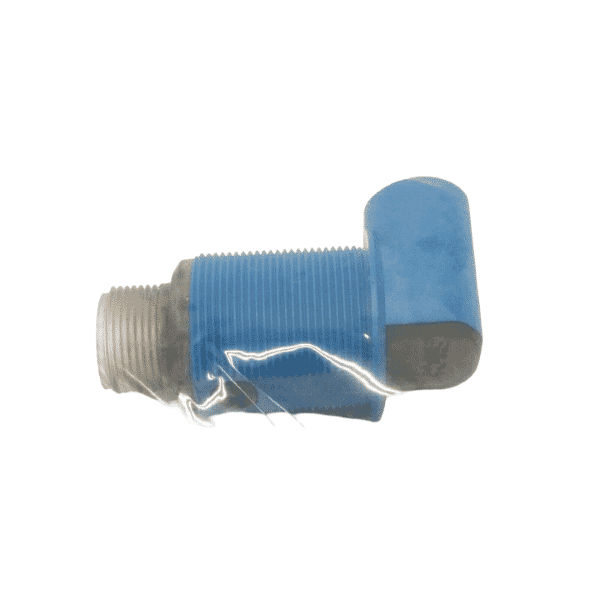

The SICK GRL18S-F2358 (part number 1064150) is a high-performance photoelectric sensor designed for precise object detection in industrial automation applications. With its retro-reflective sensing principle, this sensor offers reliable performance in detecting objects at varying distances.

Key Features:

Ultra‑long sensing range with visible red LED: The GRL18S-F2358 is capable of detecting objects from a minimum distance of 0.03 meters up to a maximum of 7.2 meters. When used with a reflector, the sensing range can extend up to 8 meters, making it suitable for applications requiring long-distance detection.

Compact M18 cylindrical housing: The sensor features a compact M18 cylindrical housing with dimensions of 18 mm in diameter and 38.1 mm in length. This compact design allows for easy integration into tight spaces, making it ideal for applications where space is limited.

Robust stainless-steel housing: Constructed with a stainless-steel housing, the GRL18S-F2358 offers high mechanical ruggedness and resistance to cleaning agents, oils, and lubricants. This durability ensures reliable operation even in harsh industrial environments.

PinPoint LED light source: The sensor utilizes a PinPoint LED light source emitting visible red light at a wavelength of 650 nm. The focused beam provides a spot size of Ø175 mm at 7 meters, ensuring accurate and precise detection of objects.

Technical Specifications:

Supply Voltage: 10 V DC to 30 V DC

Current Consumption: Approximately 30 mA

Switching Output: PNP

Switching Mode: Dark switching

Connection Type: M12 connector, 3-pin

Light Source: PinPoint LED

Wavelength: 650 nm (visible red light)

Operating Temperature Range: -25°C to +55°C

Housing Material: Stainless steel

Dimensions: 18 mm (diameter) x 38.1 mm (length)

Applications:

The GRL18S-F2358 is suitable for a wide range of industrial applications, including:

Conveyor Systems: Detecting the presence or absence of items on conveyor belts.

Packaging Machinery: Ensuring accurate positioning of packages for labeling or sorting.

Material Handling: Monitoring the movement of materials in automated warehouses.

Assembly Lines: Verifying the correct placement of components during assembly processes.
