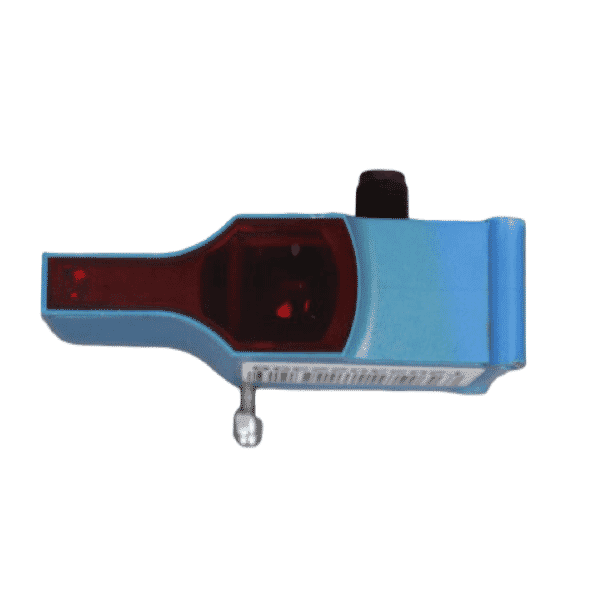

The SICK RT-P6423 (1063167) is a high-performance photoelectric sensor designed for precise object detection in industrial automation systems. Part of SICK’s ZoneControl series, this sensor is engineered to provide reliable performance in demanding environments.

Detection Capabilities

The RT-P6423 utilizes a background suppression principle, allowing it to detect objects within a range of 60 mm to 900 mm. This feature ensures accurate detection by ignoring background surfaces and focusing solely on the target object. The sensor’s infrared LED light source contributes to its precision, with a light spot size of Ø 20 mm at a distance of 500 mm. Its 7° angle of dispersion further enhances its ability to detect objects with high accuracy.

Design and Durability

Designed with a compact form factor measuring 20.6 mm × 99.2 mm × 48.9 mm, the RT-P6423 is built to fit into tight spaces within machinery and equipment. Its robust construction is complemented by an IP67 ingress protection rating, ensuring resistance against dust and water ingress. This makes the sensor suitable for use in various industrial applications, including those with exposure to harsh conditions.

Electrical Specifications

The RT-P6423 operates on a supply voltage ranging from 10 V DC to 30 V DC, with a ripple tolerance of less than 5 Vpp. It features a PNP switching output and supports dark switching mode, providing flexibility in integration with different control systems. The sensor consumes less than 20 mA of current, making it energy-efficient. Its response time is 2 ms, ensuring quick detection and response in fast-paced applications.

Installation and Application

Equipped with an M8 4-pin male connector, the RT-P6423 offers straightforward integration into existing systems. Its versatile design supports various mounting configurations, making it adaptable to different installation requirements. Common applications include zone control in conveyor systems, automated material handling, and object detection in packaging lines. The sensor’s ability to operate effectively across a wide temperature range of -40 °C to +60 °C further extends its applicability in diverse industrial settings.

In summary, the SICK RT-P6423 (1063167) photoelectric sensor combines precision detection capabilities, durable design, and versatile electrical specifications, making it an excellent choice for enhancing automation processes in industrial environments.
