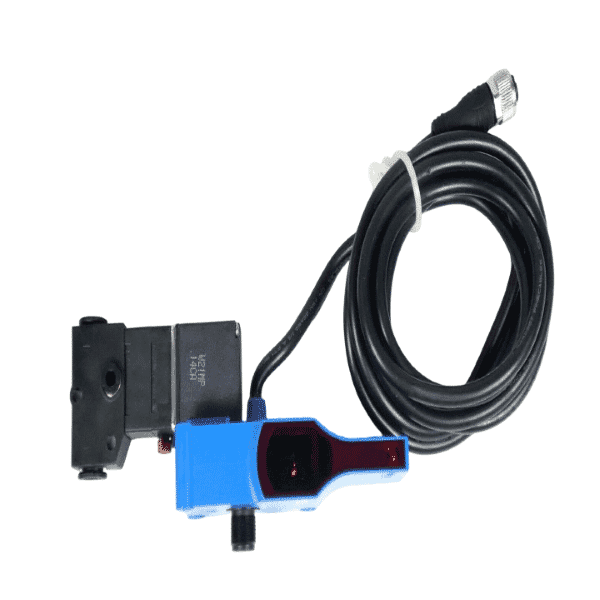

The SICK IRT-P212E41 (1063109) is a compact and intelligent photoelectric sensor that delivers reliable detection for conveyor-based automation systems. Designed as part of the ZoneControl family, this infrared background-suppression sensor offers precise detection, enhanced adjustability, and smart control features that make it an ideal choice for material-handling and packaging environments.

With a sensing range of 40 mm to 400 mm, the IRT-P212E41 is optimized for short-distance applications requiring high accuracy. Its advanced infrared beam ensures stable detection, even in conditions where background surfaces or reflections could cause interference for conventional sensors. This makes it especially effective in conveyor accumulation zones, sorting applications, and packaging lines where reliable object presence detection is critical.

One of the distinguishing features of this sensor is its dual 9-turn potentiometer adjustment system. Unlike single adjustment designs, this model provides independent control over sensitivity and sensing distance. This flexibility allows operators to fine-tune the sensor for different product sizes, surface finishes, or materials, ensuring consistent performance even with diverse items on the same conveyor line.

The ZoneControl logic integrated into the IRT-P212E41 enables intelligent conveyor management. Operating in single-accumulation mode, the sensor ensures that only one product is present in a defined zone at a time. When the conveyor remains empty for approximately 9 seconds, the sensor automatically enters a low-power sleep mode, significantly reducing energy consumption. As soon as an item enters the detection range, it instantly reactivates via the wake-in input, providing seamless operation and efficient material flow management.

Performance-wise, the IRT-P212E41 is engineered for speed and precision. With a 2 ms response time and a 250 Hz switching frequency, it supports fast-moving conveyor systems without sacrificing detection accuracy. The PNP output, rated up to 100 mA, ensures easy integration into a wide range of control systems and industrial automation setups.

Durability is central to its design. Constructed with a rugged ABS housing and rated IP67, the sensor is resistant to dust ingress and temporary water exposure. It performs reliably across a broad temperature range of –40 °C to +60 °C, making it suitable for diverse industrial settings, including refrigerated storage and warm factory environments. Built-in electrical protections, such as reverse polarity and short-circuit resistance, further enhance reliability in demanding operating conditions.

In summary, the SICK IRT-P212E41 (1063109) combines accurate infrared detection, dual adjustment flexibility, smart ZoneControl energy management, and robust industrial durability. It is a versatile and dependable choice for conveyor-driven automation where precision, adaptability, and efficiency are key requirements.
