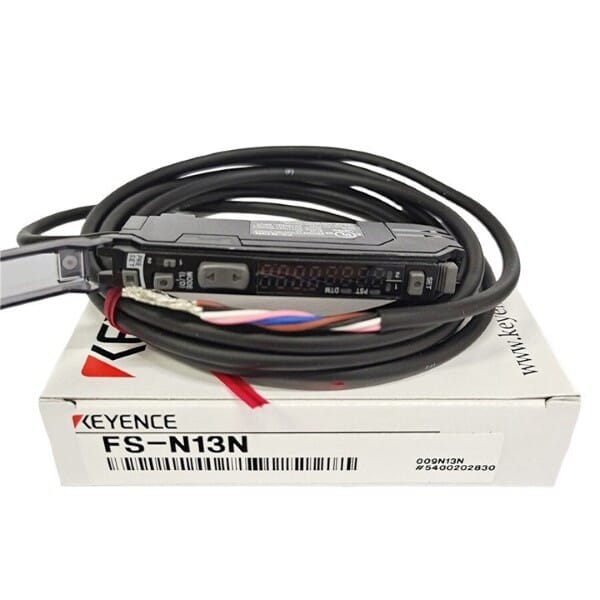

The Keyence FS-N13N Fiber Amplifier is a high-functionality, cable-type main unit designed for demanding automation environments that require both speed and reliability. With dual NPN outputs, advanced detection features, and robust build quality, the FS-N13N stands out as a versatile amplifier for precision sensing in modern manufacturing.

A core advantage of the FS-N13N is its dual-output design, which allows the amplifier to deliver two independent control signals simultaneously. Each NPN output can handle up to 100 mA (with a total of 100 mA when used standalone), making it suitable for driving multiple devices such as alarms, actuators, or PLC inputs. This flexibility enables users to implement sophisticated control logic, such as separating primary detection from error signaling, without requiring additional amplifiers.

The amplifier offers exceptional response flexibility with selectable detection speeds ranging from an ultra-fast 50 µs in HIGH SPEED mode to 16 ms in MEGA mode. This wide response spectrum ensures that the FS-N13N can handle both high-speed production lines and applications requiring stable, noise-resistant measurements. Operators can fine-tune the amplifier’s performance to meet specific process requirements, whether detecting micro-components on conveyors or ensuring stable readings in environments with varying conditions.

For enhanced system performance, the FS-N13N supports mutual interference prevention, allowing up to eight units to operate simultaneously without cross-talk in standard modes. When using the double setting, this capacity doubles, enabling larger-scale installations in close proximity. Furthermore, the amplifier supports the expansion of up to 16 interconnected units (with dual-output models treated as two units), making it highly scalable for complex manufacturing setups.

The FS-N13N is also designed with energy efficiency in mind. Its normal operating consumption is under 900 mW, with Eco modes reducing this further to just 470 mW in Eco Full mode. This not only lowers energy costs but also minimizes heat buildup, improving long-term reliability. A built-in red 4-element LED with switchable Automatic Power Control (APC) ensures consistent performance by compensating for optical variations due to aging or environmental changes.

Durability is another strength of the FS-N13N. Its robust polycarbonate housing provides lightweight yet reliable protection, while its resilience against vibration (10–55 Hz, 1.5 mm amplitude) and shock (500 m/s²) ensures stable performance in harsh factory environments. With an operating temperature range from -20 to +55 °C and tolerance to high ambient light levels (up to 30,000 lux sunlight), the amplifier delivers consistent results in diverse conditions.

In conclusion, the Keyence FS-N13N Fiber Amplifier combines speed, energy efficiency, scalability, and durability in a compact, 80 g unit. Its dual-output design, advanced detection modes, and strong environmental resistance make it an ideal solution for industries such as electronics, automotive, and packaging, where accuracy, stability, and flexible integration are essential.
