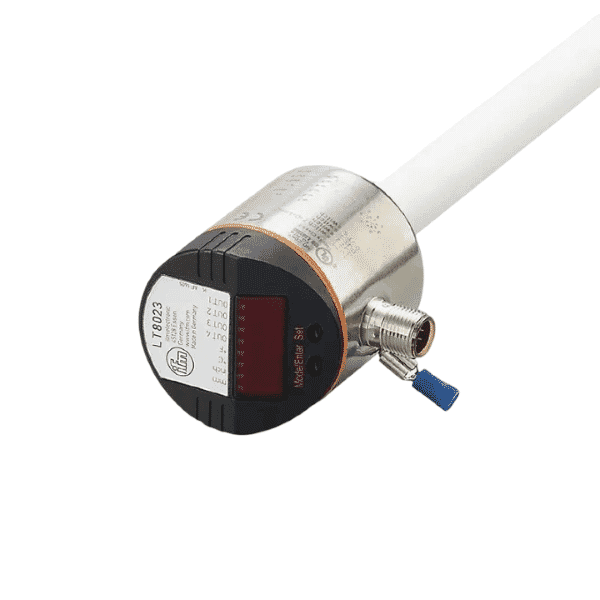

The IFM LT8023 level and temperature sensor is designed for robust and precise monitoring of industrial fluids, combining multiple measurement functions in a single, reliable device. Its extended probe length and flexible configuration make it a valuable solution for larger tanks and systems requiring dependable measurement of both liquid levels and temperature.

With four digital outputs, the LT8023 delivers a factory configuration of two switching outputs for level detection (OUT1, OUT2) and two switching outputs for temperature monitoring (OUT3, OUT4). This dual capability eliminates the need for separate sensors, simplifying installation and reducing system complexity. By providing real-time data on both fluid levels and thermal conditions, the device enhances process control and operational efficiency.

A distinguishing feature of the LT8023 is its probe length of 472 mm. This extended design allows for accurate measurement in larger vessels and deeper reservoirs, ensuring reliable monitoring even in more demanding applications. The probe is engineered for use with fluids that have a dielectric constant above 2, making it ideal for hydrous coolants, oils, oil-based media, water, and comparable liquids commonly used in industrial processes.

The LT8023 is optimised to operate within a medium temperature range of 0 to 35 °C. For applications that demand higher tolerance, pairing the sensor with the optional climate tube E43101 extends the operating range up to 60 °C. This flexibility makes the device suitable for a wide range of conditions, from standard cooling systems to more challenging oil or lubrication applications where elevated temperatures are encountered.

Despite its adaptability, the LT8023 is not designed for all media. It is unsuitable for extremely conductive or adhesive substances, as well as for use with granulates, bulk material, acids, or alkalis. These limitations ensure the device maintains durability and reliable performance within its intended application scope.

By integrating the LT8023 into process systems, operators can achieve improved safety, reduced risk of equipment damage, and more efficient operation. Reliable level detection prevents issues such as overflow or dry running, while precise temperature monitoring safeguards against overheating or suboptimal thermal conditions. These protective measures translate into less downtime and extended equipment life, contributing to lower maintenance costs and greater system productivity.

In summary, the IFM LT8023 sensor offers a comprehensive solution for fluid monitoring in industrial environments. With its extended probe design, versatile media compatibility, and dual measurement capability, it provides engineers and operators with a dependable tool for ensuring optimal system performance in oil, coolant, and water-based applications.
