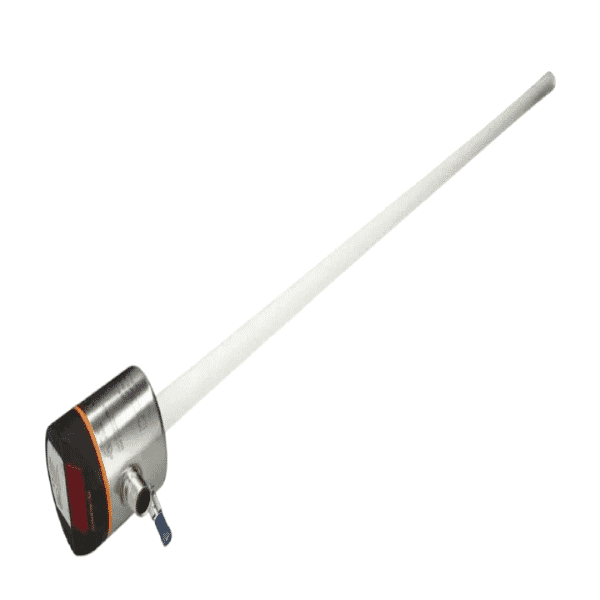

The IFM LK1024 is a long-probe capacitive level sensor engineered for precise and dependable liquid level detection in industrial applications. With its extended probe length, dual outputs, and compatibility with a broad range of media, it provides a robust solution for process monitoring in systems where accuracy and reliability are essential.

At the heart of the LK1024 is its 728 mm probe length, which allows the sensor to monitor liquid levels in deeper tanks, silos, or reservoirs. This makes it especially useful in processes requiring accurate detection across large fluid volumes, such as coolant tanks in machining, oil reservoirs, or storage containers in manufacturing facilities.

The sensor is equipped with two digital outputs, giving operators the flexibility to define multiple switching points within one device. This allows for effective minimum and maximum level monitoring, overflow protection, or pump control. By combining multiple functions into a single unit, the LK1024 reduces the need for additional sensors, simplifying installation and lowering overall system costs.

Designed for versatility, the LK1024 is factory set for use with hydrous coolants and water, but it also performs reliably in oils, oil-based media, and other liquids with dielectric constants greater than 2. This adaptability makes it suitable for a wide range of industrial environments. However, it is important to note that the sensor is not recommended for highly conductive liquids, adhering or sticky media, granulates, bulk solids, acids, alkalis, or applications in food and electroplating industries. This ensures that the sensor is applied only where its technology offers maximum accuracy and reliability.

The use of gold-plated contacts ensures superior electrical reliability, reducing signal loss and enhancing long-term durability. This feature minimises downtime caused by contact degradation, making the sensor a dependable choice for continuous industrial use.

With its ability to measure and monitor liquid levels accurately, the LK1024 is particularly effective in applications such as coolant monitoring in machining operations, oil storage tanks, hydraulic reservoirs, and general water-based system monitoring. Its quick responsiveness and dual-output flexibility ensure that operators can maintain process stability, prevent overfilling or dry-run conditions, and protect expensive equipment from damage caused by improper fluid levels.

In summary, the IFM LK1024 combines an extended probe length, dual-output flexibility, wide media compatibility, and high-reliability gold-plated contacts in a single device. Built for demanding industrial environments, it ensures dependable fluid level monitoring while streamlining integration and reducing system complexity.
