Introduction: The Race Against Cycle Time
In the competitive landscape of mold making and aerospace manufacturing, ‘Material Removal Rate’ (MRR) is the primary metric of profitability. Traditional square shoulder milling (90°) has reigned supreme for decades, but it hits a physical wall when dealing with deep cavities or hard-to-machine alloys. Enter high-feed milling (HFM). This is not just a different tool; it is a fundamental shift in machining physics.
HFM allows machinists to run table feeds up to 10 times faster than conventional methods, drastically reducing roughing cycle times. But how does it achieve this without snapping the spindle or burning up the insert? The answer lies in geometry.
At Premitools, we engineer our advanced milling cutters to exploit these physical principles, delivering industrial-grade performance for P20, H13, and Stainless Steel applications. This guide will deconstruct the science behind HFM.
The Concept: Deconstructing “Chip Thinning”
To understand HFM, we must distinguish between ‘Feed Per Tooth’ (fz) and ‘Chip Thickness’ (hm).
The Lead Angle Factor
In a standard 90° milling operation, the chip thickness equals the feed per tooth. Howeve
r, HFM cutters utilize a very shallow lead angle (typically 10° to 17°). This geometry creates the Chip Thinning Effect.
Mathematically, the relationship is:
hm = fz × sin(Lead Angle)
Because the lead angle is so small, the actual chip thickness is only a fraction of the programmed feed rate. This allows you to program incredibly high feed rates (e.g., 2.0 mm/z) while keeping the actual load on the cutting edge (hm) at a safe, standard level (e.g., 0.2 mm).

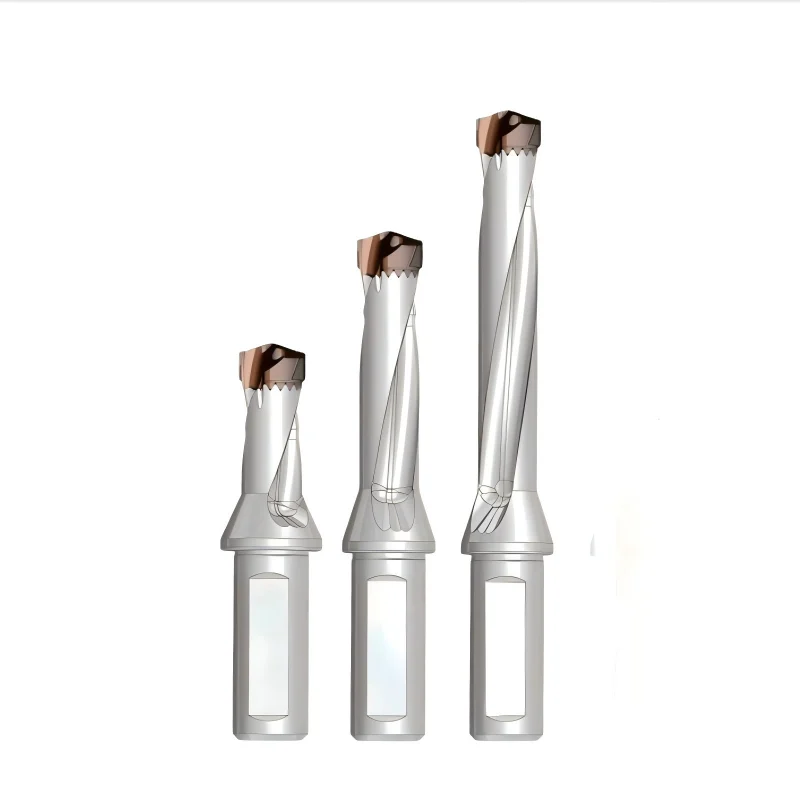

This phenomenon effectively ‘tricks’ the tool into working faster without working harder. This is similar to the efficiency gains seen in modern drilling tools that utilize advanced point geometries.
Hardware Dynamics: Axial vs. Radial Forces
Speed is not the only benefit. Stability is the second pillar of HFM.
Force Redirection
A 90° shoulder mill generates significant radial force, pushing the tool sideways against the spindle bearing. This causes vibration (chatter), especially with long overhangs.
Conversely, the shallow angle of an HFM cutter directs cutting forces axially (straight up into the spindle). Spindles are designed to withstand massive axial loads. This force redirection allows HFM tools to:
- Run with long overhangs (up to 5x-7x diameter) without chatter.
- Extend tool life by reducing lateral vibration.
- Utilize older, less rigid machines effectively.
This principle of axial stability is also applied in our turning tools, particularly in heavy roughing applications.
Application: When to Use High-Feed Milling?
HFM is a roughing specialist. It leaves a scalloped surface finish that must be cleaned up by a semi-finishing tool. It shines in the following scenarios:
1. Deep Cavity Roughing (Mold & Die)
When machining P20 or H13 mold steels, evacuating chips from deep pockets is difficult. HFM produces thin, light chips that are easily blown out by air blast. For hardened steels (>50 HRC), we recommend upgrading to our PCD/CBN series for finishing, but HFM remains the king of roughing.
2. Helical Interpolation (Hole Opening)
Instead of using a large drill, HFM can ramp down into solid material to open up large bores. This reduces the need for frequent tool changes.
3. Face Milling with Uneven Stock
If you are dealing with cast iron or forged steel with irregular skin (scale), the HFM action protects the main cutting edge by spreading the wear over a larger surface area.
Comparison: Standard 90° vs. High-Feed Milling
| Parameter | Standard 90° Shoulder Mill | High-Feed Mill (10°-15°) |
| Depth of Cut (Ap) | High (e.g., 5mm+) | Low (e.g., <2mm) |
| Feed Per Tooth (Fz) | Moderate (e.g., 0.15mm) | Extreme (e.g., 1.5mm – 3.0mm) |
| Cutting Forces | Radial (Bending) | Axial (Compressive) |
| Primary Application | Shouldering, Finishing | Volume Roughing, Deep Pockets |
| Vibration Risk | High at long overhangs | Low, very stable |
Tool Selection: Choosing the Right Insert
Premitools offers a range of insert geometries optimized for HFM. Unlike grooving tools which require sharp, precise edges, HFM inserts are robust and often double-sided for economy.
- PVD Coated Grades: Best for stainless steel and high-temp alloys (Titanium/Inconel).
- CVD Coated Grades: Ideal for cast iron and abrasive steels where wear resistance is key.
FAQ: Implementation & Troubleshooting
1. Can I use HFM on older, less rigid CNC machines?
Absolutely. In fact, HFM is often the best upgrade for older machines. Because the cutting forces are directed axially (up the spindle), it puts less bending stress on the machine’s ways and bearings compared to traditional 90-degree milling. This reduces chatter even on loose machines.
2. What about the surface finish?
HFM is inherently a roughing operation. The tool path leaves ‘scallops’ or steps on the floor and walls due to the tool’s radius. You must leave stock (typically 0.3mm – 0.5mm) for a finishing pass with a square shoulder mill or ball nose end mill.
3. Should I use coolant?
For milling steel (ISO P) and hardened steel (ISO H), Air Blast is preferred. Thermal shock from liquid coolant can cause micro-cracks in the insert coating during high-speed intermittent cutting. Liquid coolant is usually reserved for Aluminum or heat-resistant superalloys (HRSA).
4. Does HFM consume more power?
While the material removal rate is high, the power consumption efficiency is excellent. However, because you are moving the table so fast, ensure your machine’s ‘Look-Ahead’ processing capability is sufficient to maintain the feed rate without jerking.
5. Why is the programmed radius different from the tool radius?
Most HFM cutters are not true radiused tools; they have a multi-angle geometry to simulate a radius. In your CAM software, you usually define them as a torus mill or use a specific ‘Programmed Radius’ provided by the manufacturer to ensure the wall stock is calculated correctly.
6. How does it compare to Plunge Milling?
Plunge milling is purely Z-axis movement. HFM combines X, Y, and Z movement. HFM is generally more versatile and faster for 3D contouring, whereas plunge milling is a problem-solver for extreme overhangs (>10xD).
Conclusion: Calculating the ROI
Implementing High-Feed Milling is one of the fastest ways to increase shop throughput without buying new machines. By shifting the physics of cutting from radial to axial, and leveraging chip thinning, you can reduce roughing cycle times by 50% or more.
